Set up SSO with SAML 2.0

Enterprise Feature

This guide describes a feature of the dbt Cloud Enterprise plan. If you’re interested in learning more about an Enterprise plan, contact us at sales@getdbt.com.

dbt Cloud Enterprise supports single-sign on (SSO) for any SAML 2.0-compliant identity provider (IdP). Currently supported features include:

• IdP-initiated SSO
• SP-initiated SSO
• Just-in-time provisioning

This document details the steps to integrate dbt Cloud with an identity provider in order to configure Single Sign On and role-based access control.

Generic SAML 2.0 integrations

You can use the instructions in this section to configure an identity provider that isn't listed below.

Configure your identity provider

You'll need administrator access to your SAML 2.0 compliant identity provider to configure the identity provider. You can use the following instructions with any SAML 2.0 compliant identity provider.

Creating the application

1. Log into your SAML 2.0 identity provider and create a new application.
2. When promoted, configure the application with the following details:
   • Platform: Web
   • Sign on method: SAML 2.0
   • App name: dbt Cloud
   • App logo (optional): You can optionally download the dbt logo, and use as the logo for this app.

Configuring the application

The following steps use YOUR_ACCESS_URL which needs to be replaced with the appropriate Access URL for your region and plan.

To complete this section, you will need to create a login slug. This slug controls the URL where users on your account can log into your application. Login slugs are typically the lowercased name of your organization separated with dashes. For example, the login slug for dbt Labs would be dbt-labs. Login slugs must be unique across all dbt Cloud accounts, so pick a slug that uniquely identifies your company.

When prompted for the SAML 2.0 application configurations, supply the following values:

• Single sign on URL: https://YOUR_ACCESS_URL/complete/saml
• Audience URI (SP Entity ID): https://YOUR_ACCESS_URL/

• Relay State: <login slug>

Additionally, you may configure the IdP attributes passed from your identity provider into dbt Cloud. We recommend using the following values:

name	name format	value	description
email	Unspecified	${user.email}	The user's email address
first_name	Unspecified	${user.first_name}	The user's first name
last_name	Unspecified	${user.last_name}	The user's last name

dbt Cloud's role-based access control relies on group mappings from the IdP to assign dbt Cloud users to dbt Cloud groups. To use role-based access control in dbt Cloud, also configure your identity provider to provide group membership information in user attribute called groups:

name	name format	value	description
groups	Unspecified	<IdP-specific>	The groups a user belongs to in the IdP

Note

You may use a restricted group attribute statement to limit the groups set to dbt Cloud for each authenticated user. For example, if all of your dbt Cloud groups start with DBT_CLOUD_..., you may optionally apply a filter like Starts With: DBT_CLOUD_. Please contact support if you have any questions.

Collect integration secrets

After confirming your details, the IdP should show you the following values for the new SAML 2.0 integration. Keep these values somewhere safe, as you will need them to complete setup in dbt Cloud.

• Identity Provider Issuer
• Identity Provider SSO Url
• X.509 Certificate

Finish setup

After creating the Okta application, follow the instructions in the dbt Cloud Setup section to complete the integration.

Okta integration

You can use the instructions in this section to configure Okta as your identity provider.

1. Log into your Okta account. Using the Admin dashboard, create a new app.

Create a new app

2. Select the following configurations:

   • Platform: Web
   • Sign on method: SAML 2.0

3. Click Create to continue the setup process.

Configure a new app

Configure the Okta application

The following steps use YOUR_ACCESS_URL which needs to be replaced with the appropriate Access URL for your region and plan.

To complete this section, you will need to create a login slug. This slug controls the URL where users on your account can log into your application. Login slugs are typically the lowercased name of your organization separated with dashes. For example, the login slug for dbt Labs would be dbt-labs. Login slugs must be unique across all dbt Cloud accounts, so pick a slug that uniquely identifies your company.

1. On the General Settings page, enter the following details:

   • App name: dbt Cloud
   • App logo (optional): You can optionally download the dbt logo, and upload it to Okta to use as the logo for this app.

2. Click Next to continue.

Configure the app's General Settings

Configure SAML Settings

1. On the SAML Settings page, enter the following values:

   • Single sign on URL: https://YOUR_ACCESS_URL/complete/okta
   • Audience URI (SP Entity ID): https://YOUR_ACCESS_URL/
   • Relay State: <login slug>
   Configure the app's SAML Settings

2. Map your organization's Okta User and Group Attributes to the format that dbt Cloud expects by using the Attribute Statements and Group Attribute Statements forms.

3. The following table illustrates expected User Attribute Statements:

   Name	Name format	Value	Description
   email	Unspecified	${user.email}	The user's email address
   first_name	Unspecified	${user.firstName}	The user's first name
   last_name	Unspecified	${user.lastName}	The user's last name

4. The following table illustrates expected Group Attribute Statements:

   Name	Name format	Filter	Value	Description
   groups	Unspecified	Matches regex	.*	The groups that the user belongs to

You can instead use a more restrictive Group Attribute Statement than the example shown in the previous steps. For example, if all of your dbt Cloud groups start with DBT_CLOUD_, you may use a filter like Starts With: DBT_CLOUD_. Okta only returns 100 groups for each user, so if your users belong to more than 100 IdP groups, you will need to use a more restrictive filter. Please contact support if you have any questions.

Configure the app's User and Group Attribute Statements

5. Click Next to continue.

Finish Okta setup

1. Select I'm an Okta customer adding an internal app.
2. Select This is an internal app that we have created.
3. Click Finish to finish setting up the app.

Finishing setup in Okta

View setup instructions

1. On the next page, click View Setup Instructions.
2. In the steps below, you'll supply these values in your dbt Cloud Account Settings to complete the integration between Okta and dbt Cloud.

Viewing the configured applicationApplication setup instructions

3. After creating the Okta application, follow the instructions in the dbt Cloud Setup section to complete the integration.

Google integration

Use this section if you are configuring Google as your identity provider.

Configure the Google application

The following steps use YOUR_ACCESS_URL which needs to be replaced with the appropriate Access URL for your region and plan.

To complete this section, you will need to create a login slug. This slug controls the URL where users on your account can log into your application. Login slugs are typically the lowercased name of your organization separated with dashes. For example, the login slug for dbt Labs would be dbt-labs. Login slugs must be unique across all dbt Cloud accounts, so pick a slug that uniquely identifies your company.

1. Sign into your Google Admin Console via an account with super administrator privileges.
2. From the Admin console Home page, go to Apps and then click Web and mobile apps.
3. Click Add, then click Add custom SAML app.
4. Click Next to continue.
5. Make these changes on the App Details page:
   • Name the custom app
   • Upload an app logo (optional)
   • Click Continue.

Configure SAML Settings

1. Go to the Google Identity Provider details page.
2. Download the IDP metadata.
3. Copy the SSO URL and Entity ID and download the Certificate (or SHA-256 fingerprint, if needed).
4. Enter the following values on the Service Provider Details window:
   • ACS URL: https://YOUR_ACCESS_URL/complete/saml
   • Audience URI (SP Entity ID): https://YOUR_ACCESS_URL/
   • Start URL: <login slug>
5. Select the Signed response checkbox.
6. The default Name ID is the primary email. Multi-value input is not supported.
7. Use the Attribute mapping page to map your organization's Google Directory Attributes to the format that dbt Cloud expects.
8. Click Add another mapping to map additional attributes.

Expected Attributes:

Name	Name format	Value	Description
First name	Unspecified	first_name	The user's first name.
Last name	Unspecified	last_name	The user's last name.
Primary email	Unspecified	email	The user's email address.

9. To use role-based access control in dbt Cloud, enter the groups in the Group membership field during configuration:

Google groups	App attributes
Name of groups	MemberOf

10. Click Finish to continue.

Finish Google setup

1. From the Admin console Home page, go to Apps and then click Web and mobile apps.
2. Select your SAML app.
3. Click User access.
4. To turn on or off a service for everyone in your organization, click On for everyone or Off for everyone, and then click Save.
5. Ensure that the email addresses your users use to sign in to the SAML app match the email addresses they use to sign in to your Google domain.

Note: Changes typically take effect in minutes, but can take up to 24 hours.

Finish setup

After creating the Google application, follow the instructions in the dbt Cloud Setup

Azure integration

If you're using Azure Active Directory (Azure AD), the instructions below will help you configure it as your identity provider.

Create Azure AD Enterprise application

The following steps use YOUR_ACCESS_URL which needs to be replaced with the appropriate Access URL for your region and plan.

To complete this section, you will need to create a login slug. This slug controls the URL where users on your account can log into your application. Login slugs are typically the lowercased name of your organization separated with dashes. For example, the login slug for dbt Labs would be dbt-labs. Login slugs must be unique across all dbt Cloud accounts, so pick a slug that uniquely identifies your company.

Follow these steps to set up single sign-on (SSO) with dbt Cloud:

1. Log into your Azure account.

2. In the Azure AD portal, select Enterprise applications and click + New application.

3. Select Create your own application.

4. Name the application "dbt Cloud" or another descriptive name.

5. Select Integrate any other application you don't find in the gallery (Non-gallery) as the application type.

6. Click Create.

7. You can find the new application by clicking Enterprise applications and selecting All applications.

8. Click the application you just created and follow the instructions for configuring it in Configuring SAML endpoints in AD.

9. Select Single sign-on under Manage in the left navigation.

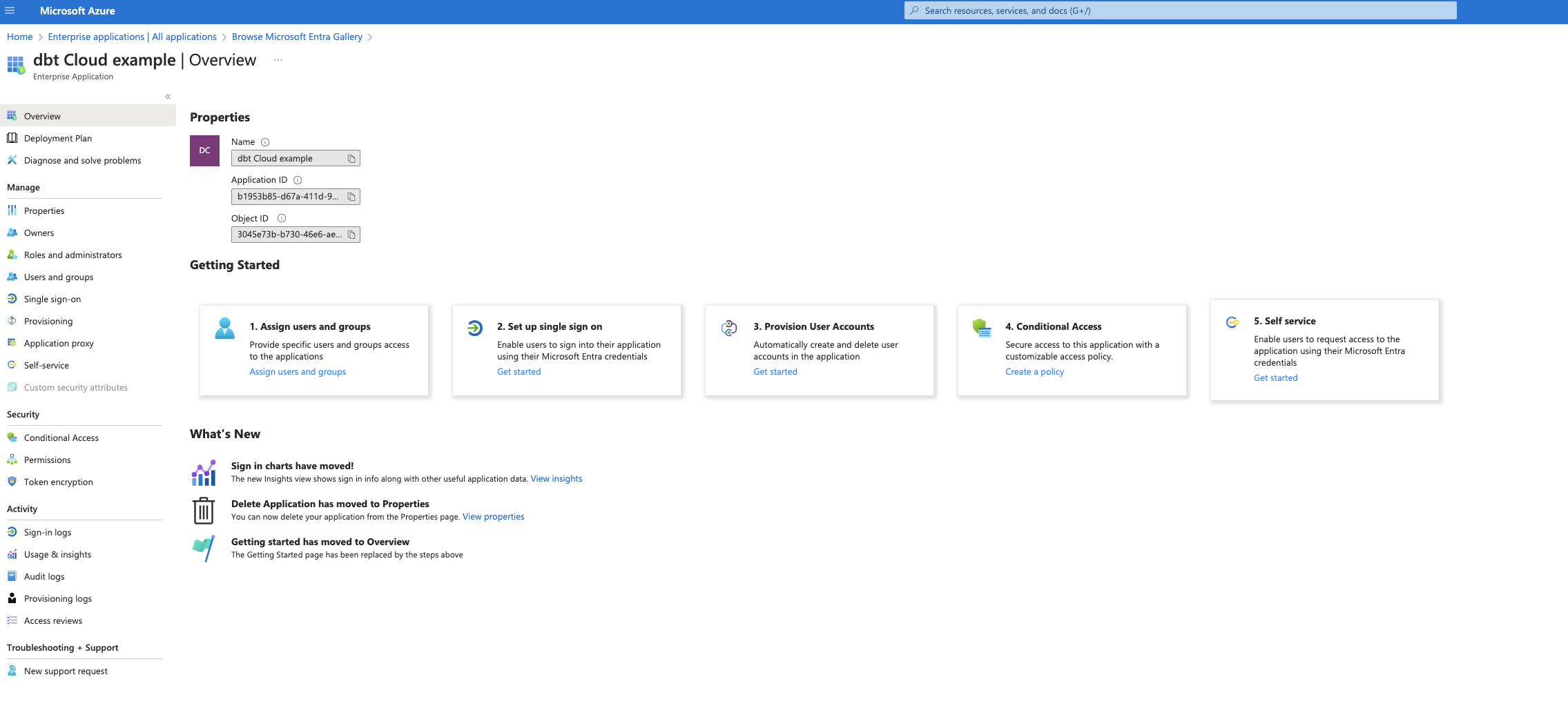

10. Click Set up single sign on under Getting Started.

11. Click SAML in "Select a single sign-on method" section.

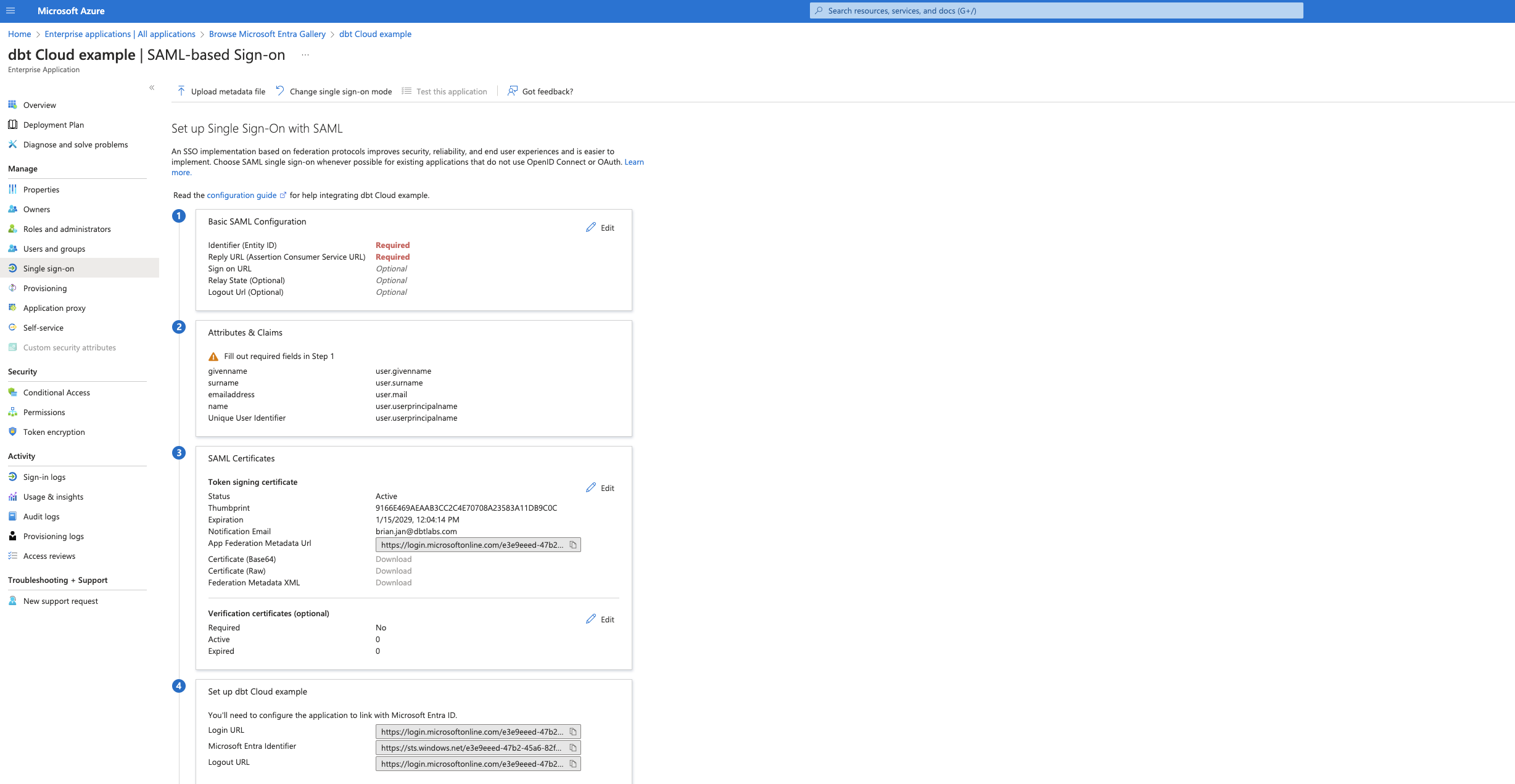

12. Click Edit in the Basic SAML Configuration section.

13. Use the following table to complete the required fields and connect to dbt:

    Field	Value
    Identifier (Entity ID)	Base URL for dbt Cloud. Use https://YOUR_ACCESS_URL/.
    Reply URL (Assertion Consumer Service URL)	Use https://YOUR_ACCESS_URL/complete/saml.
    Relay State	The slug you will configure in dbt Cloud. It's usually your company name, but you can pick anything you'd like.

14. Click Save at the top of the form.

Creating SAML settings

From the Set up Single Sign-On with SAML page:

1. Click Edit in the User Attributes & Claims section.

2. Leave the claim under "Required claim" as is.

3. Delete all claims under "Additional claims."

4. Click Add new claim and add these three new claims:

   Name	Source attribute
   email	user.mail
   first_name	user.givenname
   last_name	user.surname

5. Click Add a group claim from User Attributes and Claims.

6. If you'll assign users directly to the enterprise application, select Security Groups. If not, select Groups assigned to the application.

7. Set Source attribute to Group ID.

8. Under Advanced options, check Customize the name of the group claim and specify Name to groups.

Note: Keep in mind that the Group ID in Azure AD maps to that group's GUID. It should be specified in lowercase for the mappings to work as expected. The Source Attribute field alternatively can be set to a different value of your preference.

Finish setup

9. After creating the Azure application, follow the instructions in the dbt Cloud Setup section to complete the integration.

OneLogin integration

Use this section if you are configuring OneLogin as your identity provider.

To configure OneLogin, you will need Administrator access.

Configure the OneLogin application

The following steps use YOUR_ACCESS_URL which needs to be replaced with the appropriate Access URL for your region and plan.

To complete this section, you will need to create a login slug. This slug controls the URL where users on your account can log into your application. Login slugs are typically the lowercased name of your organization separated with dashes. For example, the login slug for dbt Labs would be dbt-labs. Login slugs must be unique across all dbt Cloud accounts, so pick a slug that uniquely identifies your company.

1. Log into OneLogin, and add a new SAML 2.0 Application.
2. Configure the application with the following details:
   • Platform: Web
   • Sign on method: SAML 2.0
   • App name: dbt Cloud
   • App logo (optional): You can optionally download the dbt logo, and use as the logo for this app.

Configure SAML settings

3. Under the Configuration tab, input the following values:

   • RelayState: <login slug>
   • Audience (EntityID): https://YOUR_ACCESS_URL/
   • ACS (Consumer) URL Validator: https://YOUR_ACCESS_URL/complete/saml
   • ACS (Consumer) URL: https://YOUR_ACCESS_URL/complete/saml

4. Next, go to the Parameters tab. You must have a parameter for the Email, First Name, and Last Name attributes and include all parameters in the SAML assertions. When you add the custom parameters, make sure you select the Include in SAML assertion checkbox.

We recommend using the following values:

name	name format	value
email	Unspecified	Email
first_name	Unspecified	First Name
last_name	Unspecified	Last Name

dbt Cloud's role-based access control relies on group mappings from the IdP to assign dbt Cloud users to dbt Cloud groups. To use role-based access control in dbt Cloud, also configure OneLogin to provide group membership information in user attribute called groups:

name	name format	value	description
groups	Unspecified	Series of groups to be used for your organization	The groups a user belongs to in the IdP

Collect integration secrets

5. After confirming your details, go to the SSO tab. OneLogin should show you the following values for the new integration. Keep these values somewhere safe, as you will need them to complete setup in dbt Cloud.

• Issuer URL
• SAML 2.0 Endpoint (HTTP)
• X.509 Certificate

Finish setup

6. After creating the OneLogin application, follow the instructions in the dbt Cloud Setup section to complete the integration.

dbt Cloud Setup

Providing IdP values to dbt Cloud

To complete setup, follow the steps below in dbt Cloud:

1. Navigate to the Account Settings and then click on Single Sign On.

2. Click Edit on the upper right corner.

3. Provide the following SSO details:

   Field	Value
   Log in with	SAML 2.0
   Identity Provider SSO Url	Paste the Identity Provider Single Sign-On URL shown in the IdP setup instructions
   Identity Provider Issuer	Paste the Identity Provider Issuer shown in the IdP setup instructions
   X.509 Certificate	Paste the X.509 Certificate shown in the IdP setup instructions
   Slug	Enter your desired login slug.

   Configuring the application in dbt Cloud

4. Click Save to complete setup for the SAML 2.0 integration.

5. After completing the setup, you can navigate to the URL generated for your account's slug to test logging in with your identity provider. Additionally, users added the the SAML 2.0 app will be able to log in to dbt Cloud from the IdP directly.

Logging in

Users can now log into the dbt Cloud by navigating to the following URL, replacing LOGIN_SLUG with the value used in the previous steps and YOUR_ACCESS_URL with the appropriate Access URL for your region and plan:

https://YOUR_ACCESS_URL/enterprise-login/LOGIN_SLUG

Setting up RBAC

After configuring an identity provider, you will be able to set up role-based access control for your account.
