Set up the dbt Semantic Layer

With the dbt Semantic Layer, you can centrally define business metrics, reduce code duplication and inconsistency, create self-service in downstream tools, and more.

Prerequisites

• Have a dbt Cloud Team or Enterprise account. Single-tenant accounts should contact their account representative setup.
• Ensure your production and development environments use dbt version 1.6 or higher.
• Use Snowflake, BigQuery, Databricks, or Redshift.
• Create a successful run in the environment where you configure the Semantic Layer.
  • Note: Semantic Layer supports querying in Deployment environments; development querying is coming soon.
• Understand MetricFlow's key concepts powering the dbt Semantic Layer.
• Note that the dbt Semantic Layer doesn't support SSH tunneling for Postgres or Redshift connections. It also doesn't support using Single sign-on (SSO) for production credentials, though SSO is supported for development user accounts.

📹 Learn about the dbt Semantic Layer with on-demand video courses!

Explore our dbt Semantic Layer on-demand course to learn how to define and query metrics in your dbt project.

Additionally, dive into mini-courses for querying the dbt Semantic Layer in your favorite tools: Tableau, Hex, and Mode.

Set up dbt Semantic Layer

You must be part of the Owner group and have the correct license and permissions to set up the Semantic Layer at the environment and project level.

• Enterprise plan:
  • Developer license with Account Admin permissions, or
  • Owner with a Developer license, assigned Project Creator, Database Admin, or Admin permissions.
• Team plan: Owner with a Developer license.
• Free trial: You are on a free trial of the Team plan as an Owner, which means you have access to the dbt Semantic Layer.

1. Select environment

Select the environment where you want to enable the Semantic Layer:

1. Navigate to Account settings in the navigation menu.
2. On the Settings left sidebar, select the specific project you want to enable the Semantic Layer for.
3. In the Project details page, navigate to the Semantic Layer section. Select Configure Semantic Layer.

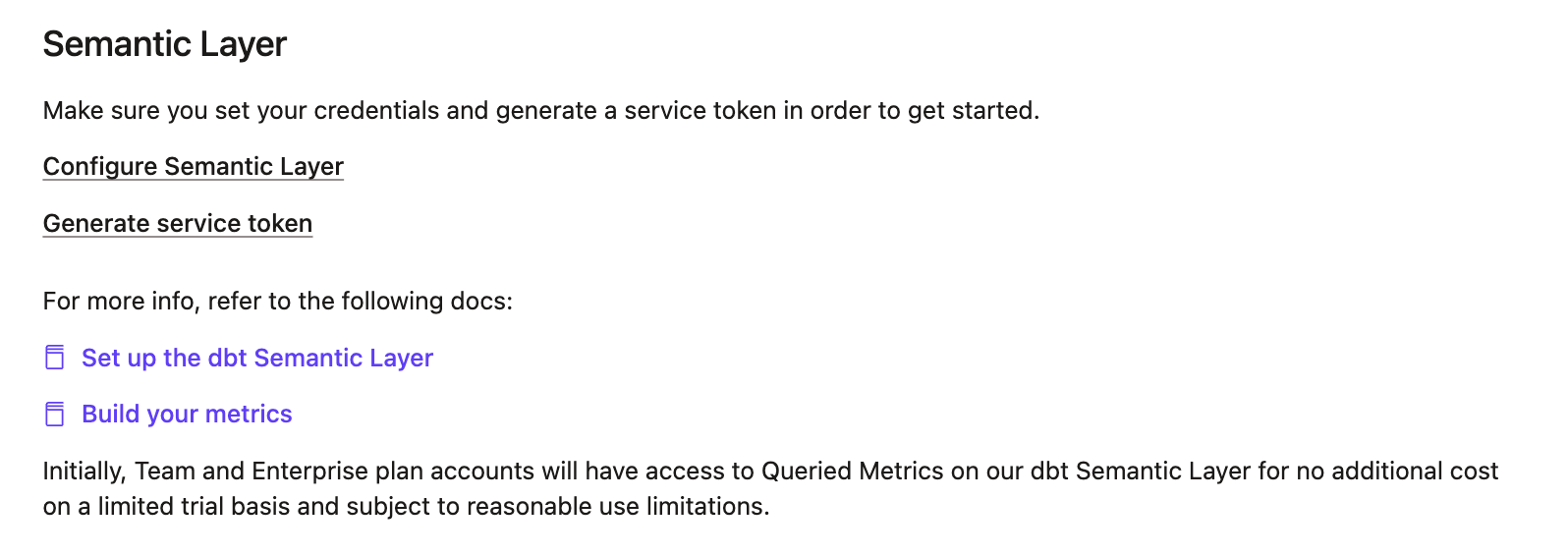

Semantic Layer section in the 'Project Details' page

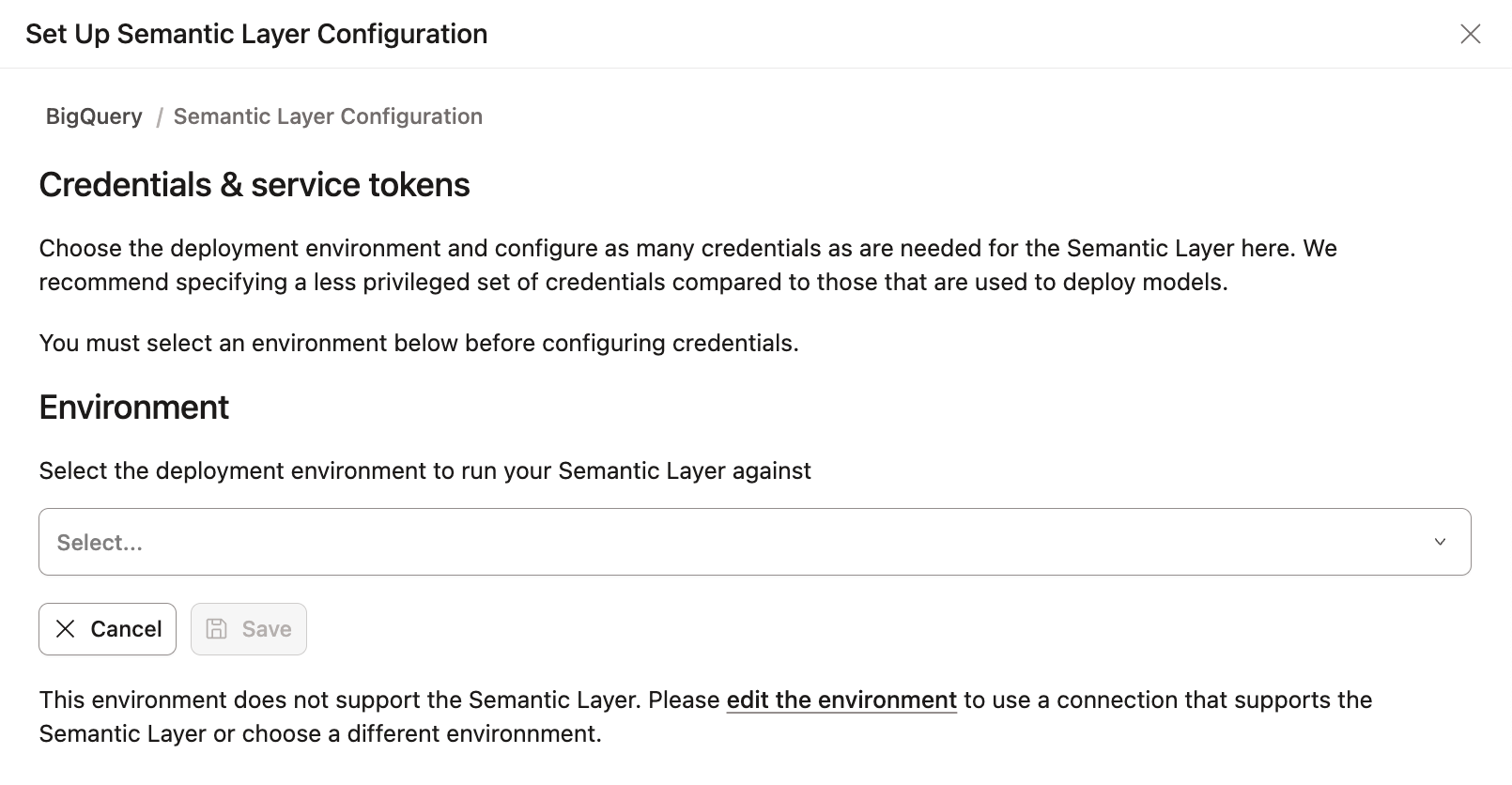

4. In the Set Up Semantic Layer Configuration page, select the deployment environment you want for the Semantic Layer and click Save. This provides administrators with the flexibility to choose the environment where the Semantic Layer will be enabled.

dbt Cloud Enterprise can skip to Add more credentials

dbt Cloud Enterprise plans can add multiple credentials and have a different set up. Skip to Add more credentials for more configuration details.

2. Add a credential and create service tokens

The dbt Semantic Layer uses service tokens for authentication which are tied to an underlying data platform credential that you configure. The credential configured is used to execute queries that the Semantic Layer issues against your data platform. This credential controls the physical access to underlying data accessed by the Semantic Layer, and all access policies set in the data platform for this credential will be respected.

dbt Cloud Enterprise plans can add multiple credentials and map those to service tokens. Refer to Add more credentials for more information.

1. In the Set Up Semantic Layer Configuration page, enter the credentials specific to your data platform that you want the Semantic Layer to use.

   • Use credentials with minimal privileges. The Semantic Layer requires read access to the schema(s) containing the dbt models used in your semantic models for downstream applications
   • Note, environment variables such as {{env_var('DBT_WAREHOUSE')}, aren't supported in the dbt Semantic Layer yet. You must use the actual credentials.

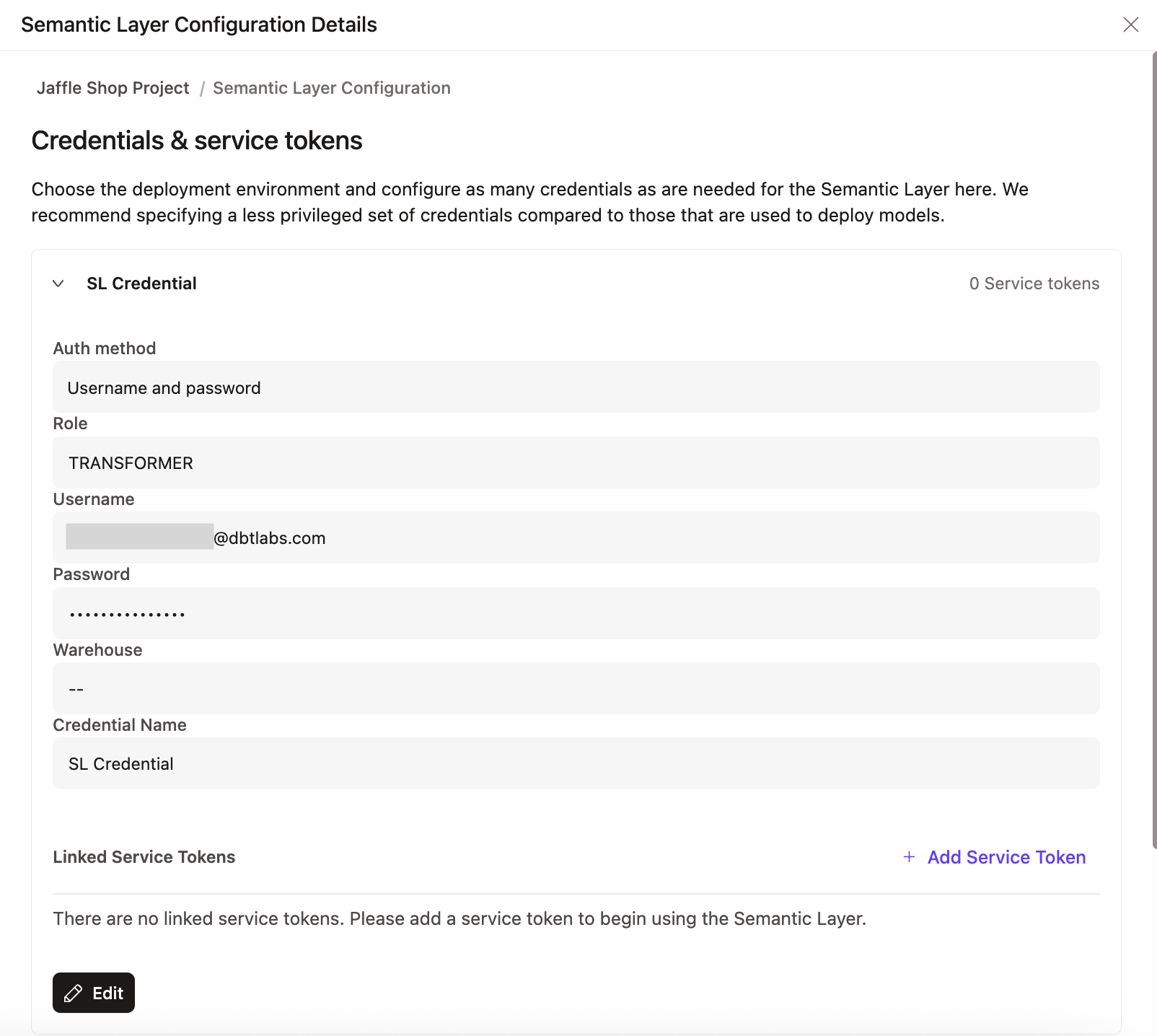

     Enter the credentials specific to your data platform that you want the Semantic Layer to use and select the deployment environment.

2. Create a Service Token after you add the credential.

   • Enterprise plans: Name and generate a service token on the credential page directly.
   • Team plans: You can return to the Project Details page and click the Generate a Service Token button.

3. Name the token and save it. Once the token is generated, you won't be able to view this token again so make sure to record it somewhere safe.

info

Teams plans can create multiple service tokens that map to one underlying credential. Adding multiple credentials for tailored access is available for Enterprise plans.

Book a free live demo to discover the full potential of dbt Cloud Enterprise.

3. View connection detail

1. Go back to the Project details page for connection details to connect to downstream tools.

2. Copy and share the environment ID, service token, host, as well as the service token name to the relevant teams for BI connection set up. If your tool uses the GraphQL API, save the GraphQL API host information instead of the JDBC URL.

   For info on how to connect to other integrations, refer to Available integrations.

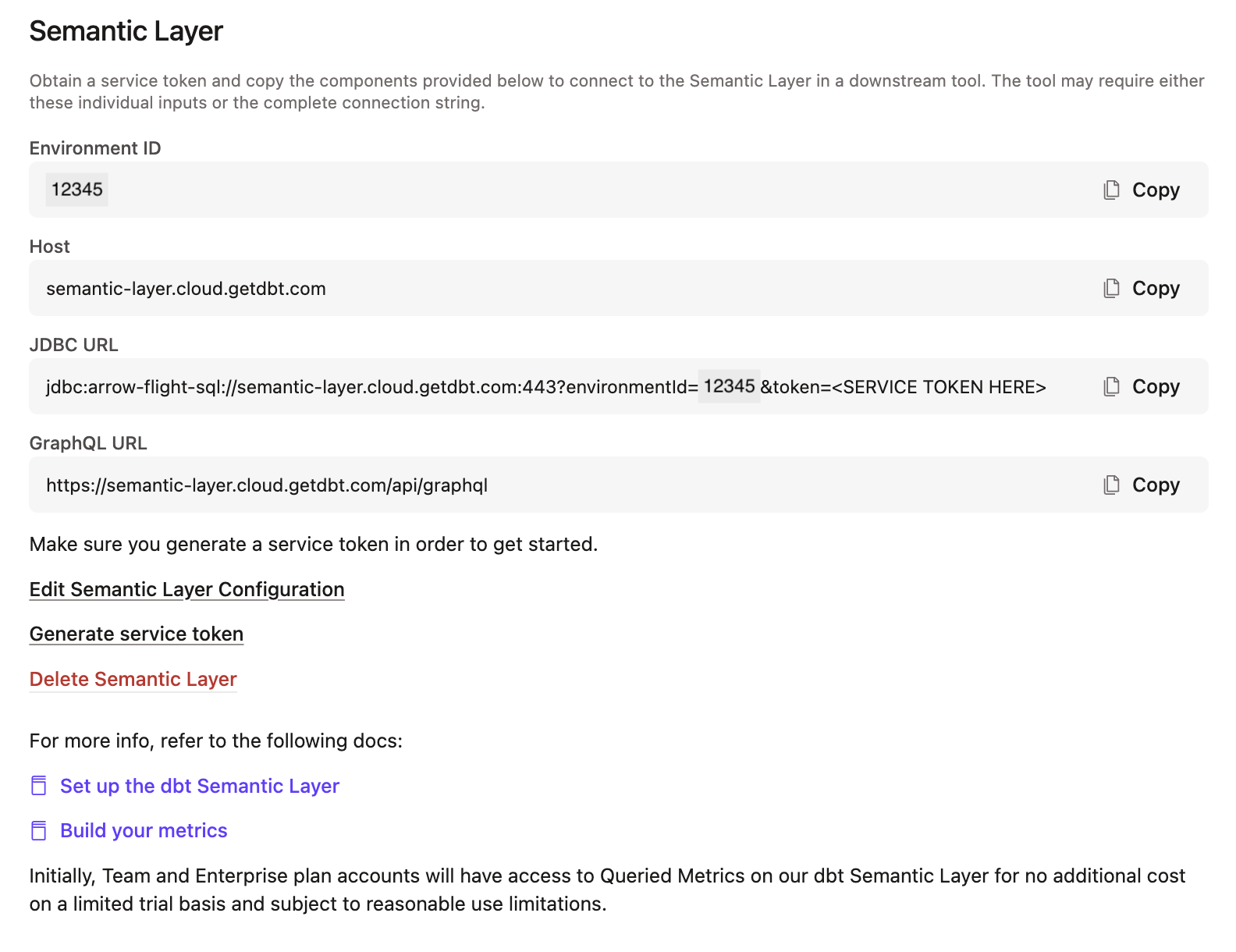

After configuring, you'll be provided with the connection details to connect to you downstream tools.

4. Add more credentials enterprise

dbt Cloud Enterprise plans can optionally add multiple credentials and map them to service tokens, offering more granular control and tailored access for different teams, which can then be shared to relevant teams for BI connection setup. These credentials control the physical access to underlying data accessed by the Semantic Layer.

We recommend configuring credentials and service tokens to reflect your teams and their roles. For example, create tokens or credentials that align with your team's needs, such as providing access to finance-related schemas to the Finance team.

Note that:

• Admins can link multiple service tokens to a single credential within a project, but each service token can only be linked to one credential per project.
• When you send a request through the APIs, the service token of the linked credential will follow access policies of the underlying view and tables used to build your semantic layer requests.
• Environment variables, like {{env_var('DBT_WAREHOUSE')} aren't supported the dbt Semantic Layer yet. You must use the actual credentials instead.

To add multiple credentials and map them to service tokens:

1. After configuring your environment, on the Credentials & service tokens page click the Add Semantic Layer credential button to configure the credential for your data platform.

2. On the Create New Semantic Layer Credential page, you can create multiple credentials and map them to a service token.

3. In the Add credentials section, fill in the data platform's credential fields. We recommend using “read-only” credentials.

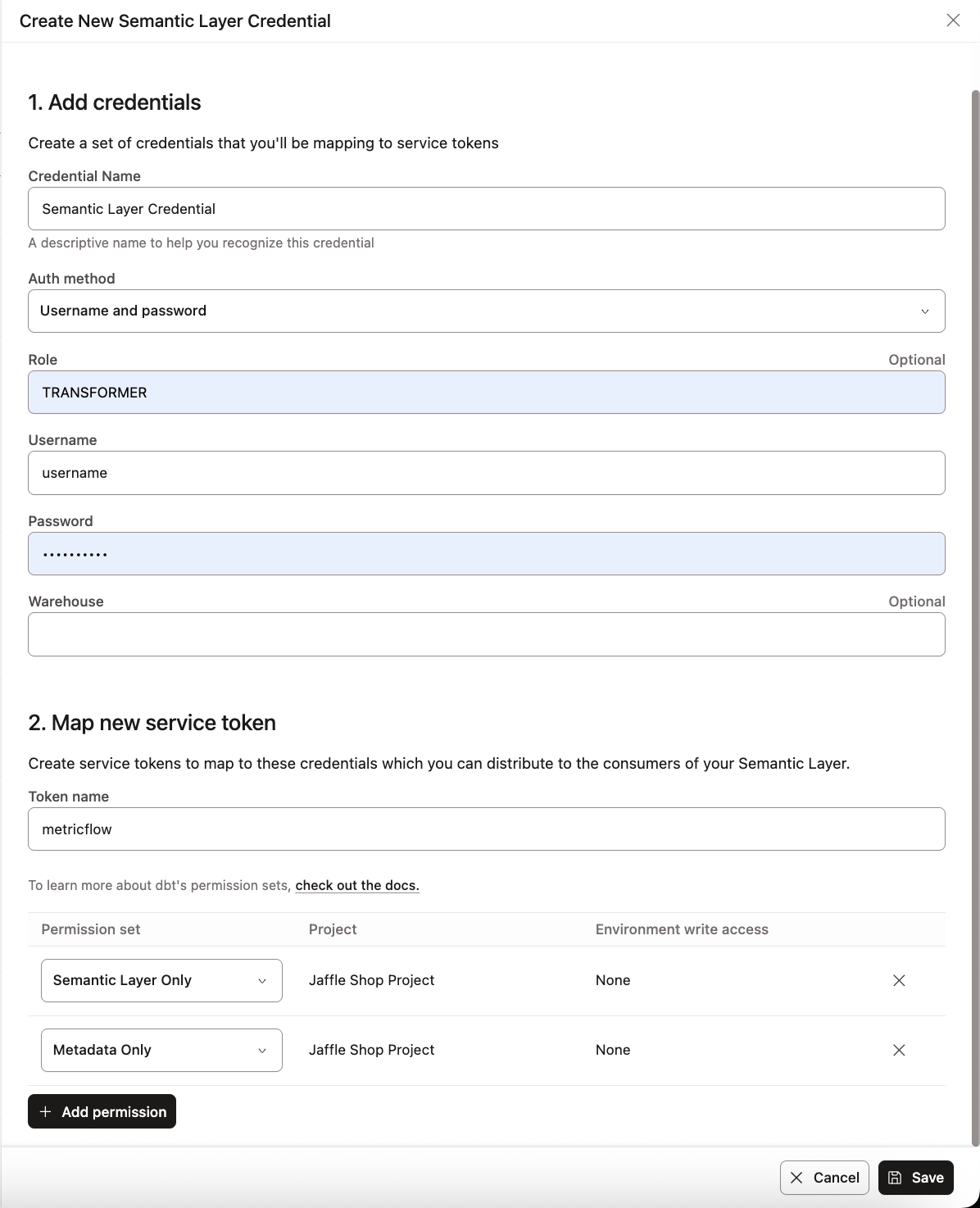

   Add credentials and map them to a service token.

4. In the Map new service token section, map a service token to the credential you configured in the previous step. dbt Cloud automatically selects the service token permission set you need (Semantic Layer Only and Metadata Only).

   • To add another service token, click Add service token under the Linked service tokens section.

5. Click Save to link the service token to the credential. Remember to copy and save the service token securely, as it won't be viewable again after generation.

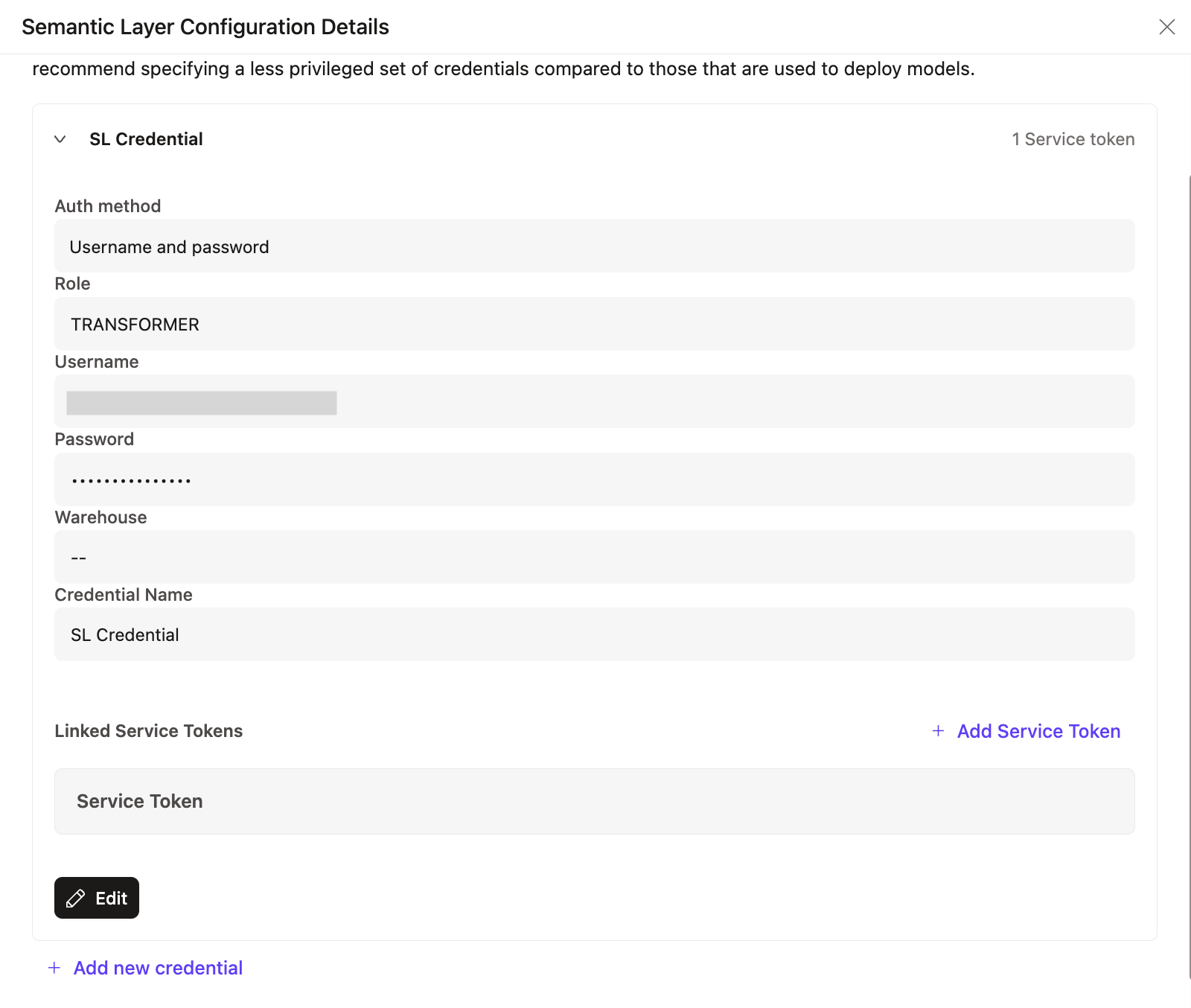

   Manage multiple credentials and link them to service tokens for more granular control.

6. To delete a credential, go back to the Semantic Layer & Credentials page. Select Delete credential to remove a credential and click Save.

   When you delete a credential, any service tokens mapped to that credential in the project will no longer work and will break for any end users.

Additional configuration

The following are the additional flexible configurations for Semantic Layer credentials.

Unlink service tokens

• Unlink a service token from the credential by clicking Unlink under the Linked service tokens section. If you try to query the Semantic Layer with an unlinked credential, you'll experience an error in your BI tool because no valid token is mapped.

Manage from service token page

View credential from service token

• View your Semantic Layer credential directly by navigating to the API tokens and then Service tokens page.
• Select the service token to view the credential it's linked to. This is useful if you want to know which service tokens are mapped to credentials in your project.

Create a new service token

• From the Service tokens page, create a new service token and map it to the credential(s) (assuming the semantic layer permission exists). This is useful if you want to create a new service token and directly map it to a credential in your project.
• Make sure to select the correct permission set for the service token (Semantic Layer Only and Metadata Only).

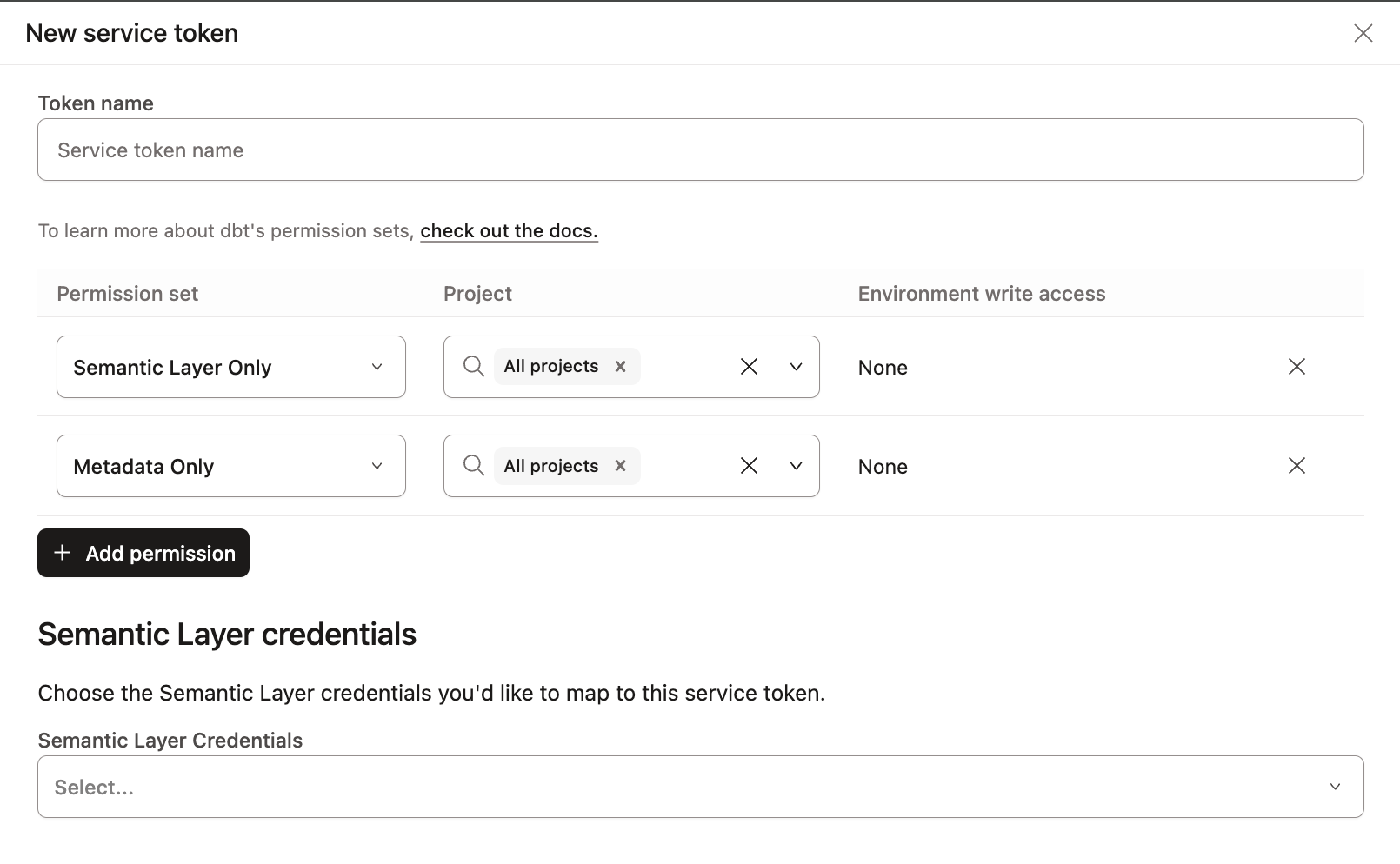

Create a new service token and map credentials directly on the separate 'Service tokens page'.

Next steps

• Now that you've set up the dbt Semantic Layer, start querying your metrics with the available integrations.
• Optimize querying performance using declarative caching.
• Validate semantic nodes in CI to ensure code changes made to dbt models don't break these metrics.
• If you haven't already, learn how to build you metrics and semantic models in your development tool of choice.
• Learn about commonly asked dbt Semantic Layer FAQs.

FAQs

 How does caching interact with access controls?

Cached data is stored separately from the underlying models. If metrics are pulled from the cache, we don’t have the security context applied to those tables at query time.

In the future, we plan to clone credentials, identify the minimum access level needed, and apply those permissions to cached tables.
