Navigate the dbt Insights interface EnterpriseEnterprise +

Learn how to navigate Insights interface and use the main components.

Insights provides an interactive interface for writing, running, and analyzing SQL queries. This section highlights the main components of Insights.

Query console​

The query console is the main component of Insights. It allows you to write, run, and analyze SQL queries. The Query console supports:

  1. Query console editor, which allows you to write, run, and analyze SQL queries:
  • It supports syntax highlighting and autocomplete suggestions
  • Hyperlink from SQL code ref to the corresponding Explorer page
  1. Query console menu, which contains Bookmark (icon), Develop, and Run buttons.
  2. Query output panel, below the query editor and displays the results of a query:
  • Has three tabs: Data, Chart, and Details, which allow you to analyze query execution and visualize results.
  1. Query console sidebar menu, which contains the Catalog, Bookmark, Query history, and dbt Copilot icons.

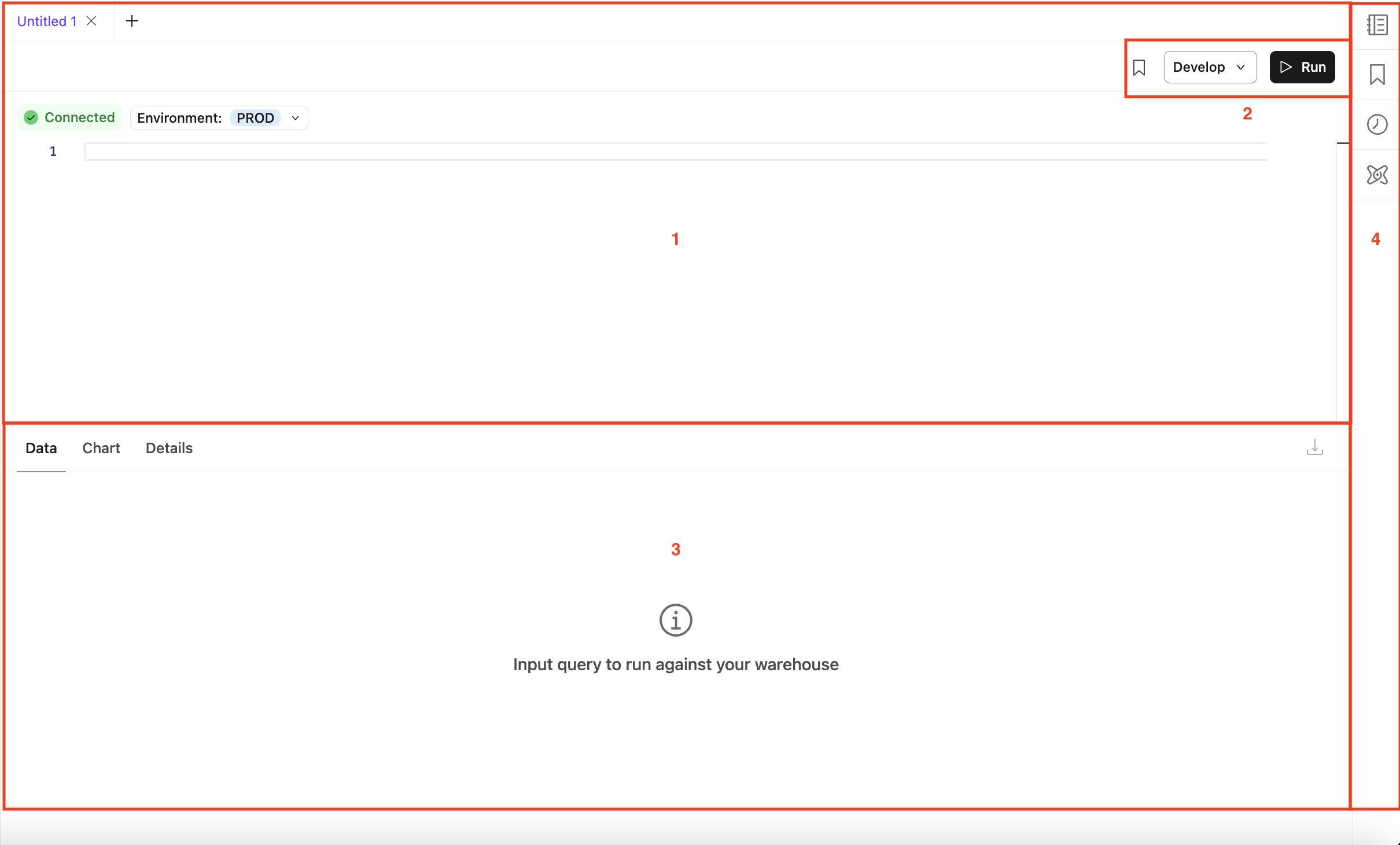

dbt Insights main interface with blank query editordbt Insights main interface with blank query editor

Query console menu​

The Query console menu is located at the top right of the Query editor. It contains the Bookmark, Develop, and Run buttons:

  • Bookmark button — Save your frequently used SQL queries as favorites for easier access.
    • When you click Bookmark, a Bookmark Query Details modal (pop up box) will appear where you can add a Title and Description.
    • Let dbt Copilot do the writing for you — use the AI assistant to automatically generate a helpful description for your bookmark.
    • Access the newly created bookmark from the Bookmark icon in the Query console sidebar menu.

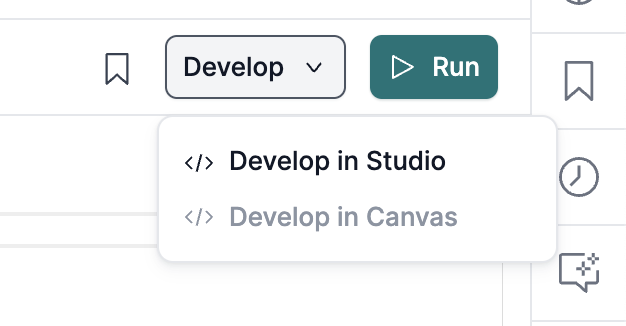

  • Develop: Open the Studio IDE or Canvas to continue editing your SQL query.
  • Run button — Run your SQL query and view the results in the Data tab.

Semantic Layer querying​

The Semantic Layer querying in dbt Insights lets you build queries against the Semantic Layer without writing SQL code. It guides you in creating queries based on available metrics, dimensions, and entities. With this feature, you can:

  • Build analyses from your predefined semantic layer metrics.
  • Have filters, time ranges, and aggregates tailored to the semantic model.
  • View the underlying SQL code for each metric query.

To build a query in dbt Insights:

  1. From the main menu, go to Insights.

  2. Click Build a query.

  3. From the Environment dropdown, select PROD or STG. Even thought you see DEV as an option, queries against development environments are deferred based on deferral rules, so selecting it will not query your development environment directly.

  4. Select what you want to include in your query.

    • Click Add Metric to select the metrics for your query.
    • Click Add Group by to choose the dimensions that break down your metric, such as time grain (day, week, month), region, product, or customer.
    • Click Add Filter to create a filter to narrow your results.
    • Click Add Order by to select how you want to sort the results of your query.
    • Click Add Limit, select the amount of results you want to see when you run your query. If left blank, you will get all results.

  5. Click Run to run your query. Results are available in the Data tab. You can see the SQL code generated in the Details tab.

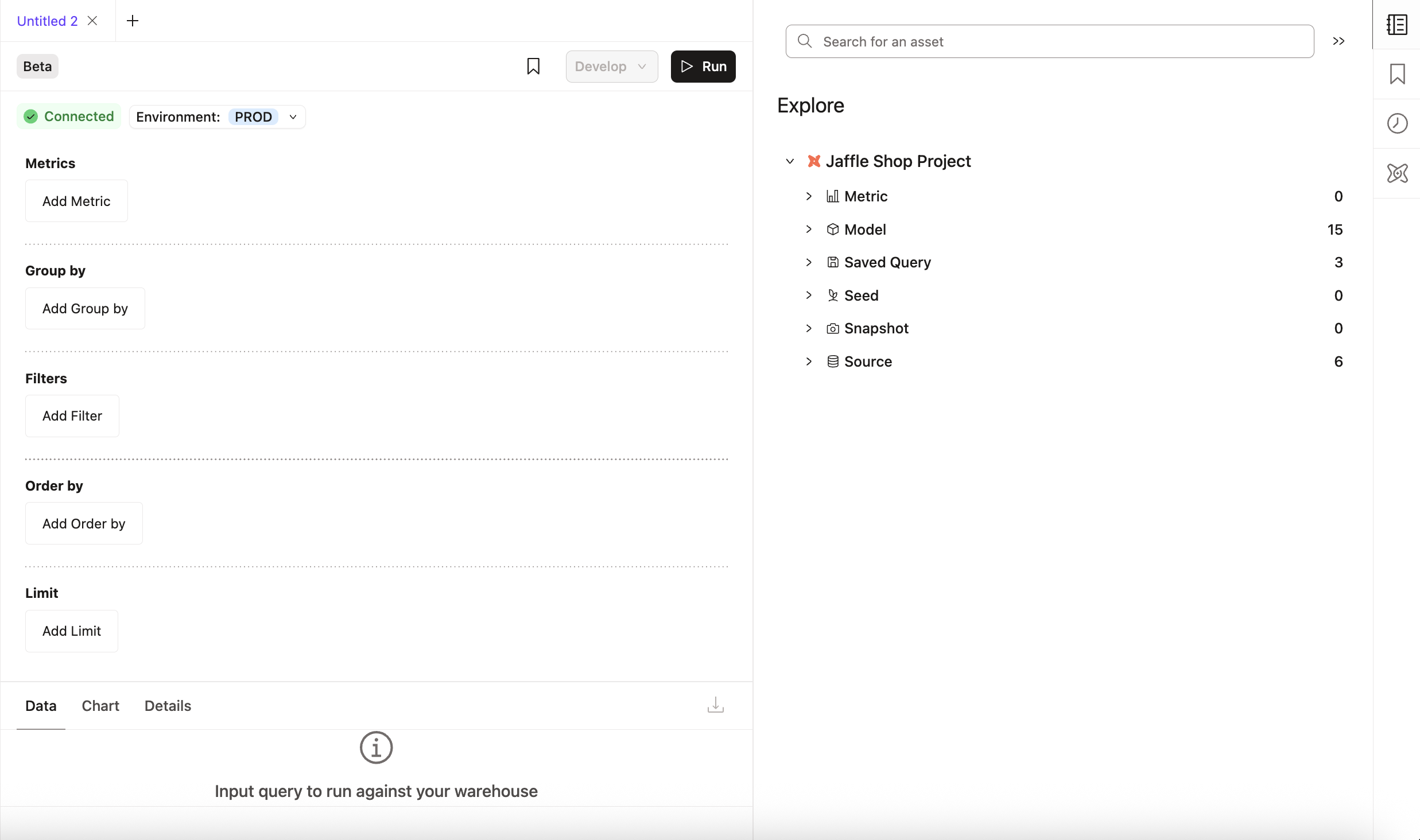

    Semantic Layer querying within dbt InsightsSemantic Layer querying within dbt Insights

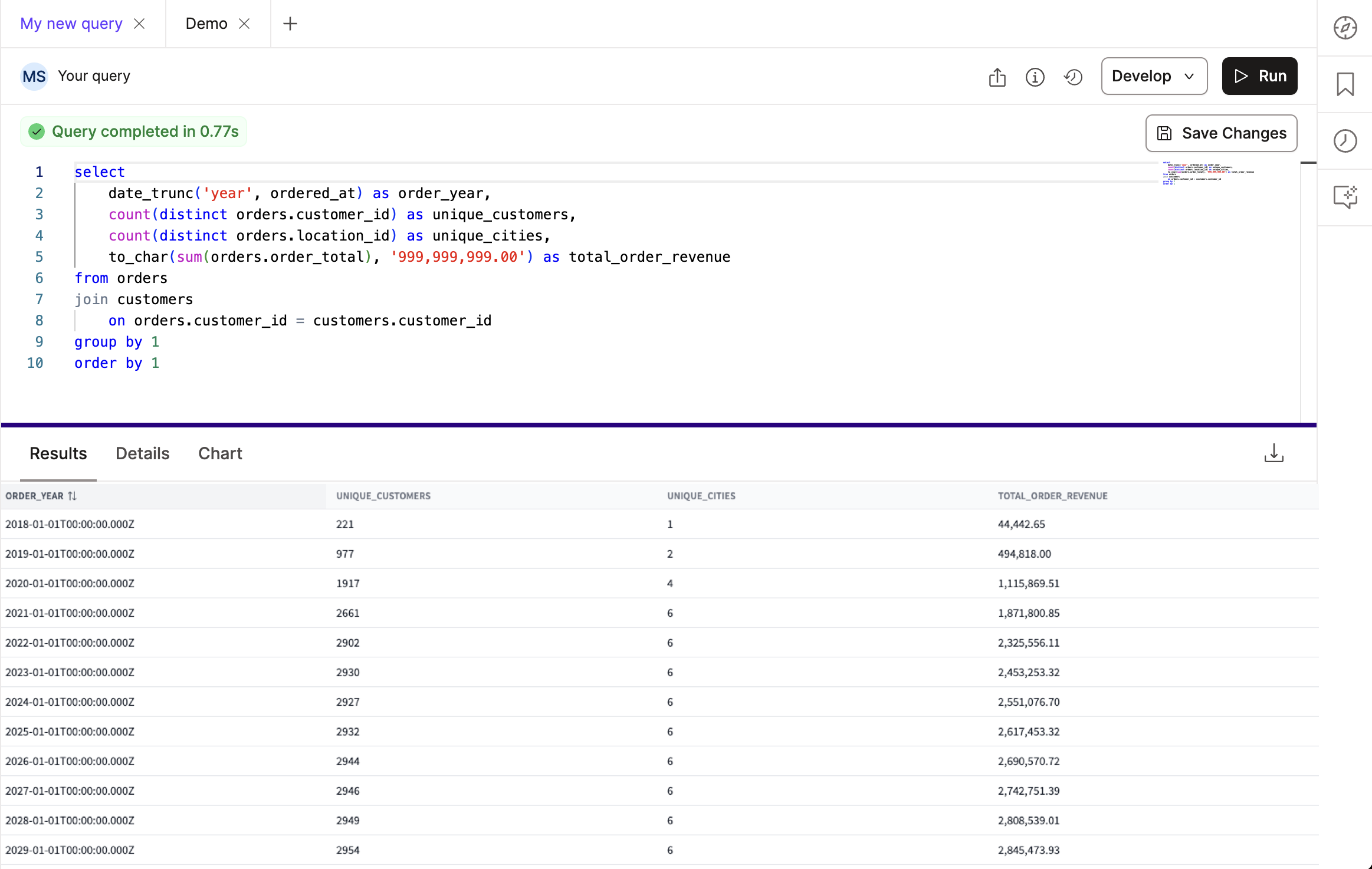

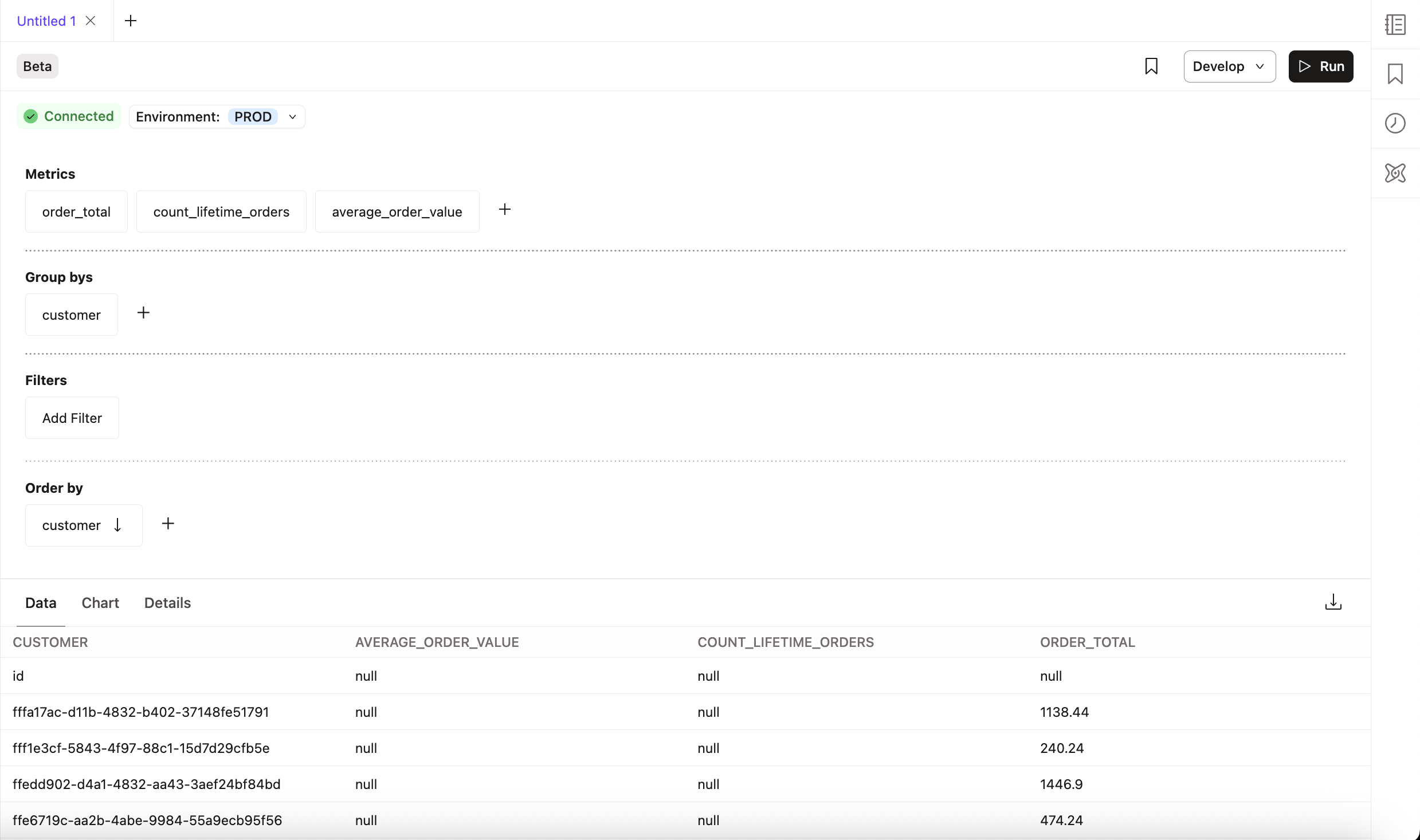

    Results are displayed in the Data tabResults are displayed in the Data tab

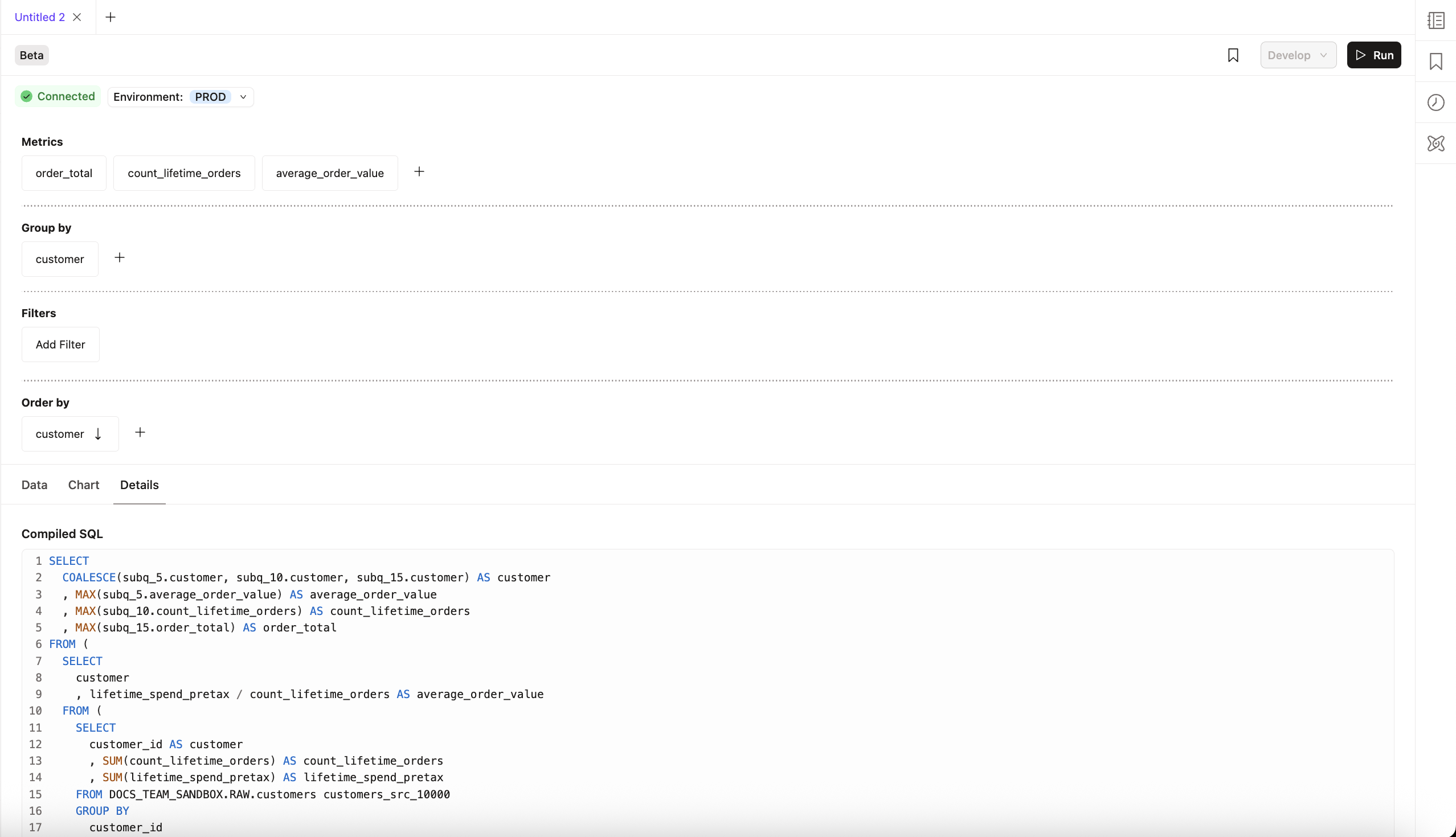

    The generated SQL code in the Details tabThe generated SQL code in the Details tab

Query output panel​

The Query output panel is below the query editor and displays the results of a query. It displays the following tabs to analyze query execution and visualize results:

  • Data tab — Preview your SQL results, with results paginated.
  • Details tab — Generates succinct details of executed SQL query:
    • Query metadata — dbt Copilot's AI-generated title and description. Along with the supplied SQL and compiled SQL.
    • Connection details — Relevant data platform connection information.
    • Query details — Query duration, status, column count, row count.
  • Chart tab — Visualizes query results with built-in charts.
    • Use the chart icon to select the type of chart you want to visualize your results. Available chart types are line chart, bar chart, or scatterplot.
    • Use the Chart settings to customize the chart type and the columns you want to visualize.
    • Available chart types are line chart, bar chart, or scatterplot.
  • Download button — Allows you to export the results to CSV

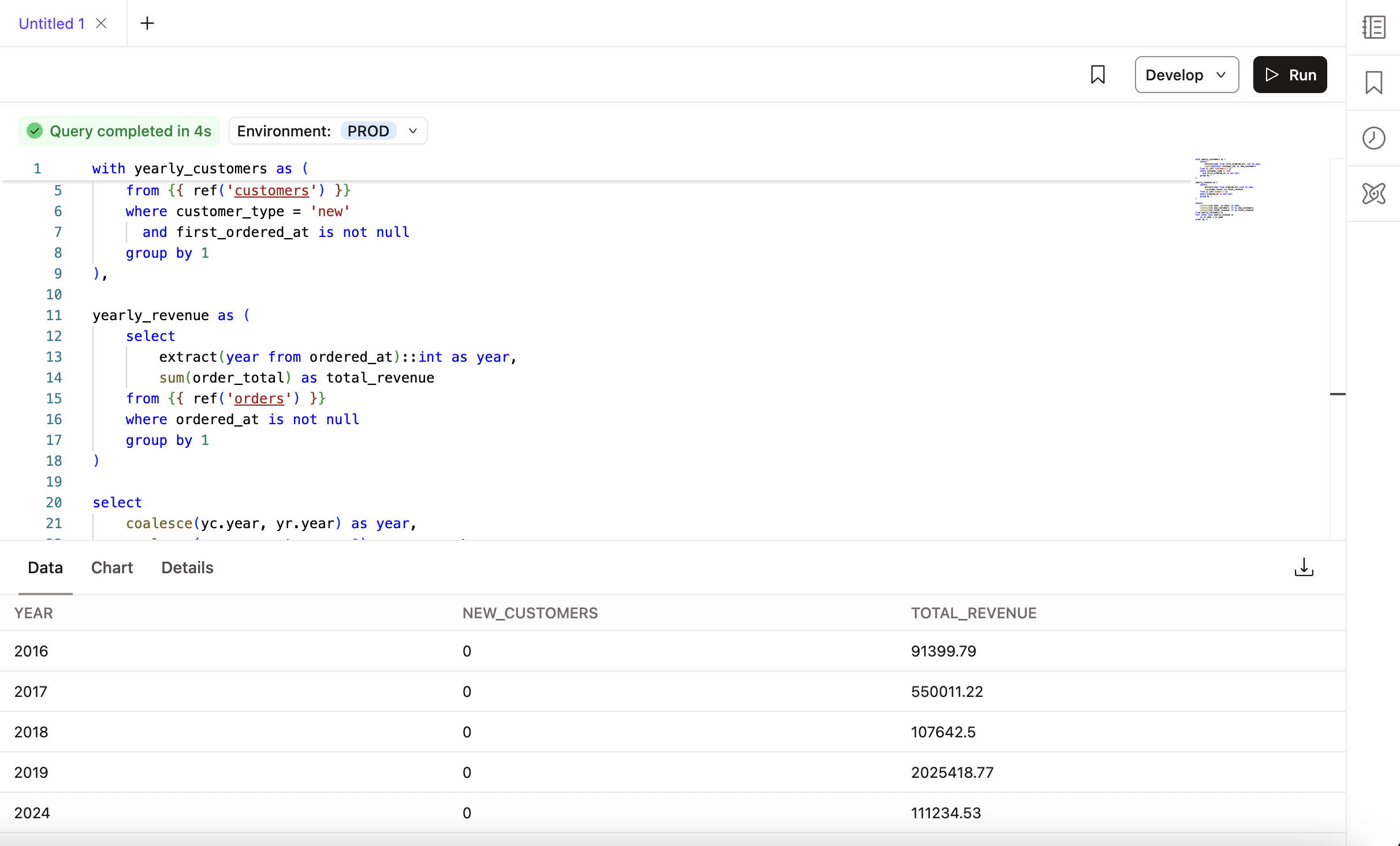

dbt Insights Data tabdbt Insights Data tab
dbt Insights Chart tabdbt Insights Chart tab
dbt Insights Details tabdbt Insights Details tab

Query console sidebar menu​

The Query console sidebar menu and icons contains the following options:

dbt Catalog​

Catalog icon — View your project's models, columns, metrics, and more using the integrated Catalog view.

dbt Insights dbt Catalog icondbt Insights dbt Catalog icon

Bookmark​

Save and access your frequently used queries from the query console sidebar.

To save and manage bookmarks:

  1. Click Bookmark in the Query console menu to save the current query. In the Bookmark Query Details modal, add a Title and Description.
  2. Select the Bookmark icon in the sidebar to open your list of saved queries.
  3. Select a saved Insight to view its details or open it in the query editor.

For sharing saved Insights and version history, check out Save your Insights.

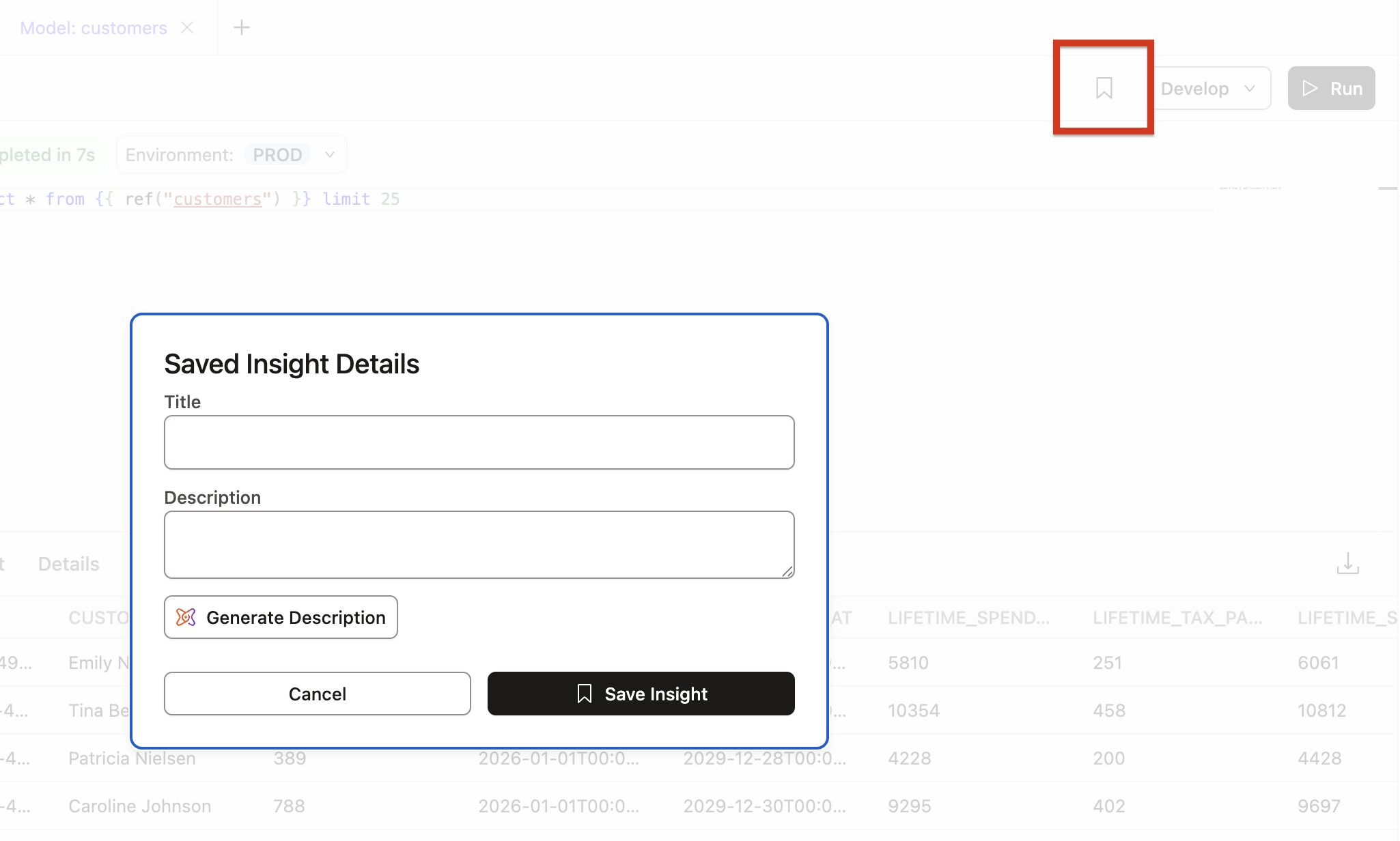

Bookmark Query Details modalBookmark Query Details modal

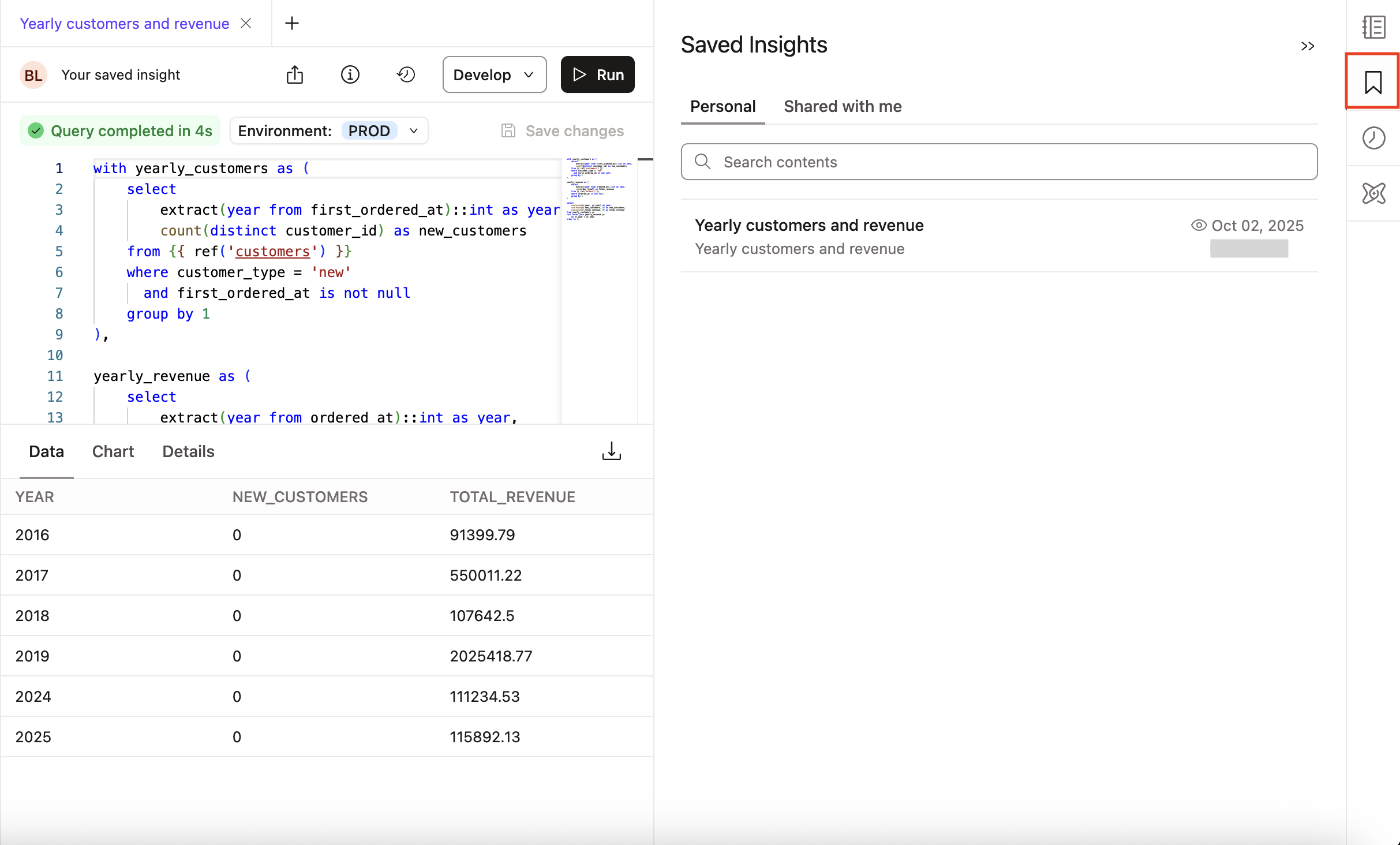

Manage your query bookmarksManage your query bookmarks

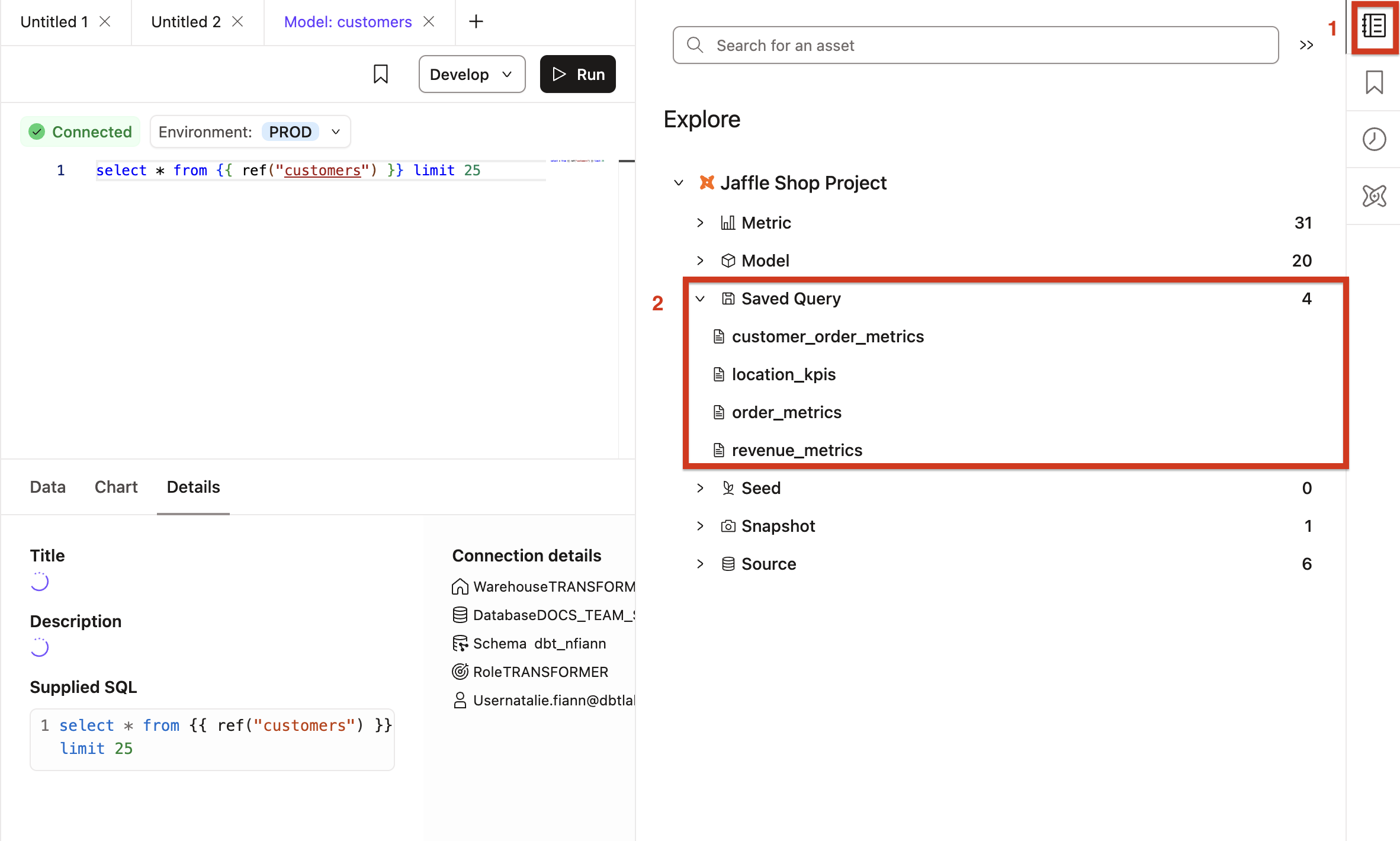

List view of saved InsightsList view of saved Insights

Query history​

View past queries, their statuses (All, Success, Error, or Pending), start time, and duration. Search for past queries and filter by status. You can also re-run a query from the Query history.

dbt Insights Query history icondbt Insights Query history icon

dbt Copilot​

info

dbt Wizard is the new and recommended AI agent for governed data development in dbt. It handles the full development lifecycle — investigation, building, validation, and shipping — grounded in your dbt project's lineage, tests, contracts, and metric definitions.

dbt Copilot is separate from dbt Wizard and is dbt's inline AI assistance experience, providing single-click generation of SQL, documentation, tests, and semantic models in Studio IDE, Canvas, and Insights.

Refer to dbt AI FAQs, Billing, and dbt's Terms of Use for more information.

Use dbt Copilot to modify or generate queries using natural language prompts or to chat with the Analyst agent to gather insights about your data.

Use dbt Copilot in Insights in two ways:

  • Generate SQL: Build queries in Insights with natural language prompts to explore and query data with an intuitive, context-rich interface. For more information, see Build queries in dbt Insights.

  • dbt Copilot Analyst agent Beta: Ask questions to get intelligent data analysis with automated workflows, governed insights, and actionable recommendations. This is a conversational AI feature where you can ask natural language prompts and receive analysis in real-time.

    Enable beta features under Account settings > Personal profile > Experimental features to use the Analyst agent. For steps on how to enable, see Preview new dbt platform features.

    Some sample questions you can ask the agent:

    • What region are my sales growing the fastest?
    • What was the revenue last month?
    • How should I optimize my marketing spend next quarter?
    • How many customers do I have, broken down by customer type?

    dbt Copilot Analyst agent creates an analysis plan based on your question. dbt Copilot Analyst agent:

    1. Gets context using your semantic models and metrics.
    2. Generates SQL queries using your project's definitions.
    3. Executes the SQL query and returns results with context.
    4. Reviews and summarizes the generated insights and provides a comprehensive answer.

    The agent can loop through these steps multiple times if it hasn't reached a complete answer, allowing for complex, multi-step analysis.⁠

    For more information, see dbt Copilot in Insights.

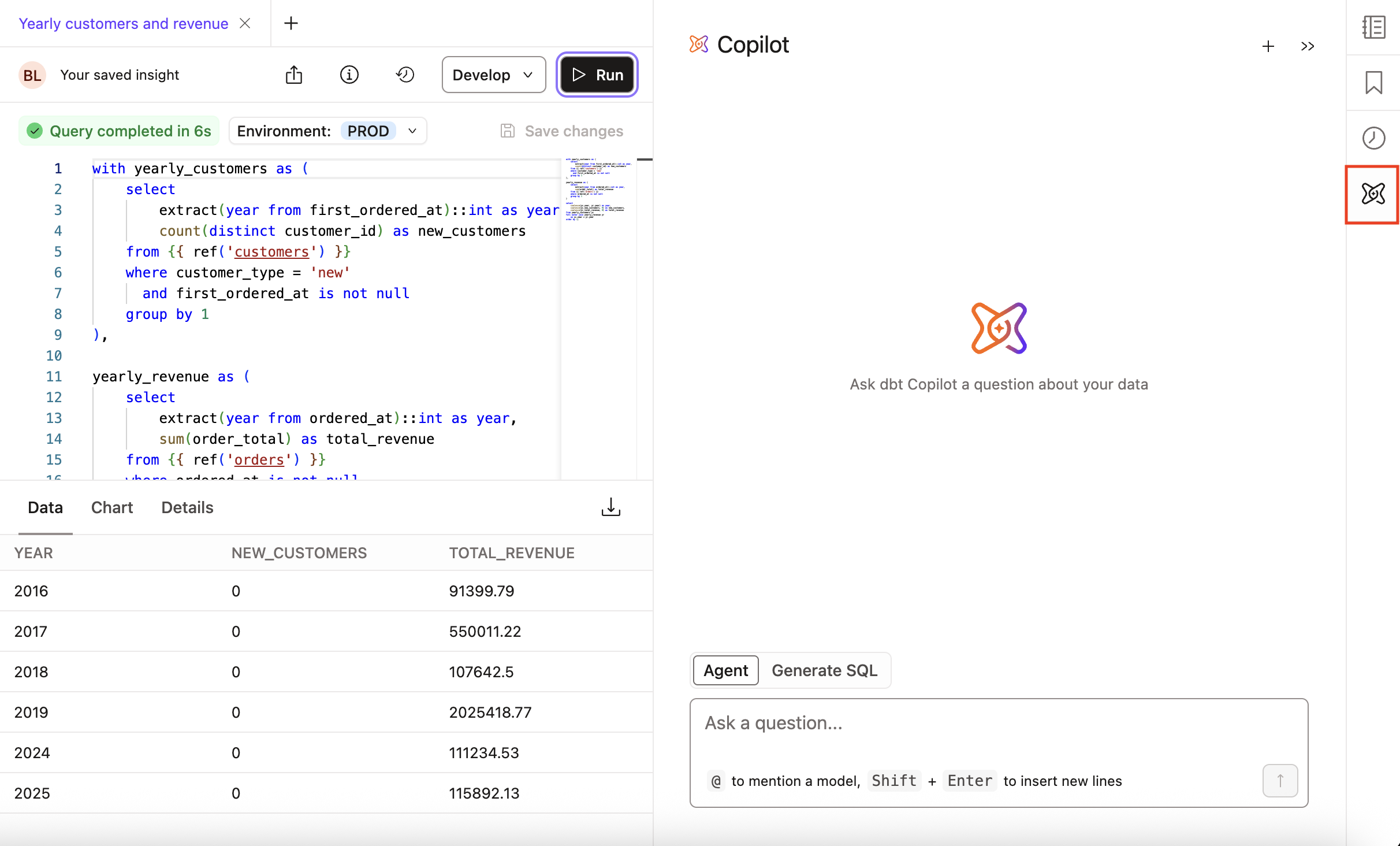

dbt Copilot in Insightsdbt Copilot in Insights

LSP features​

The following Language Server Protocol (LSP) features are available for projects upgraded to Fusion:

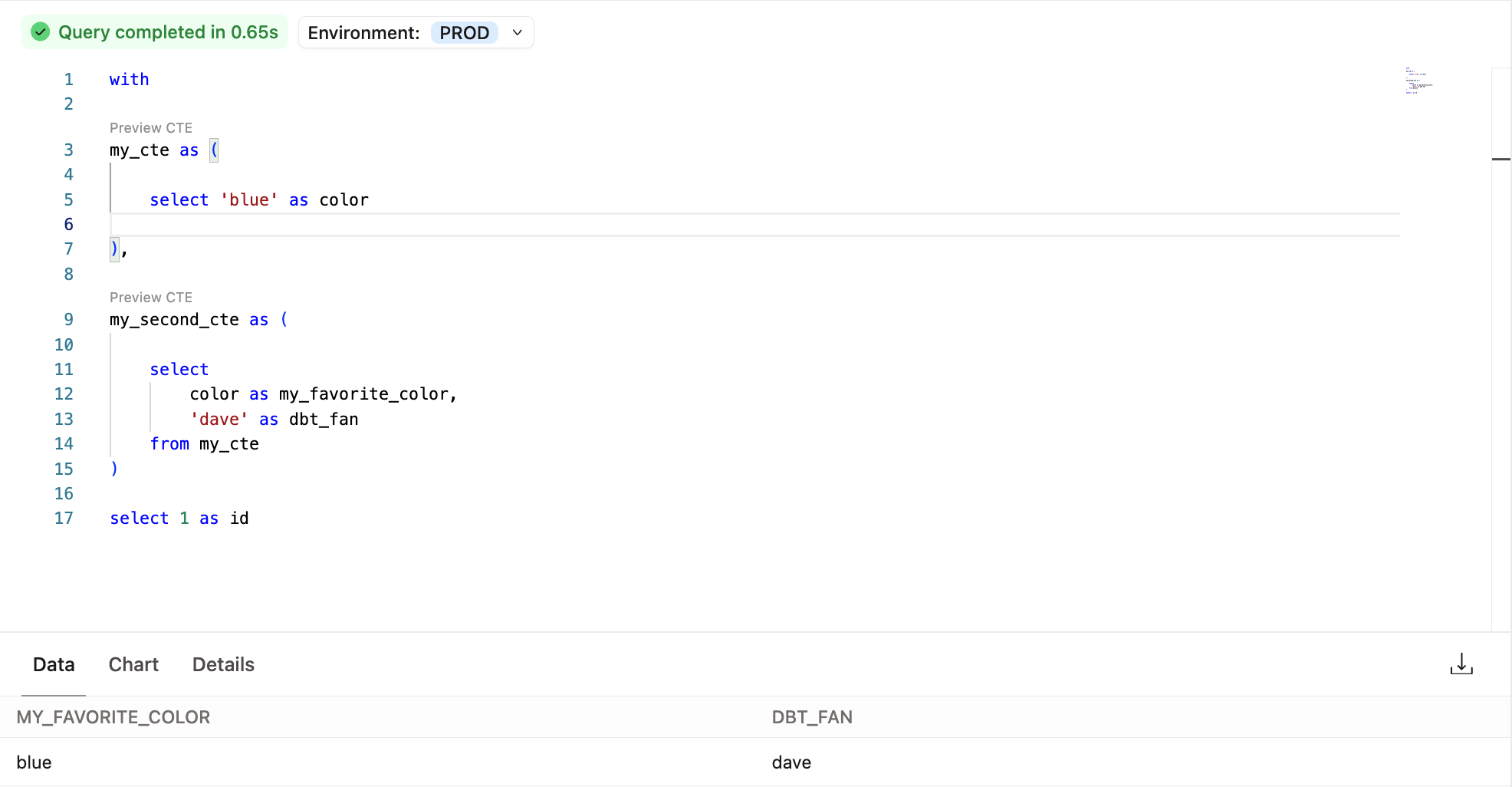

  • Live CTE previews: Preview a CTE’s output for faster validation and debugging.

    Preview CTE in InsightsPreview CTE in Insights

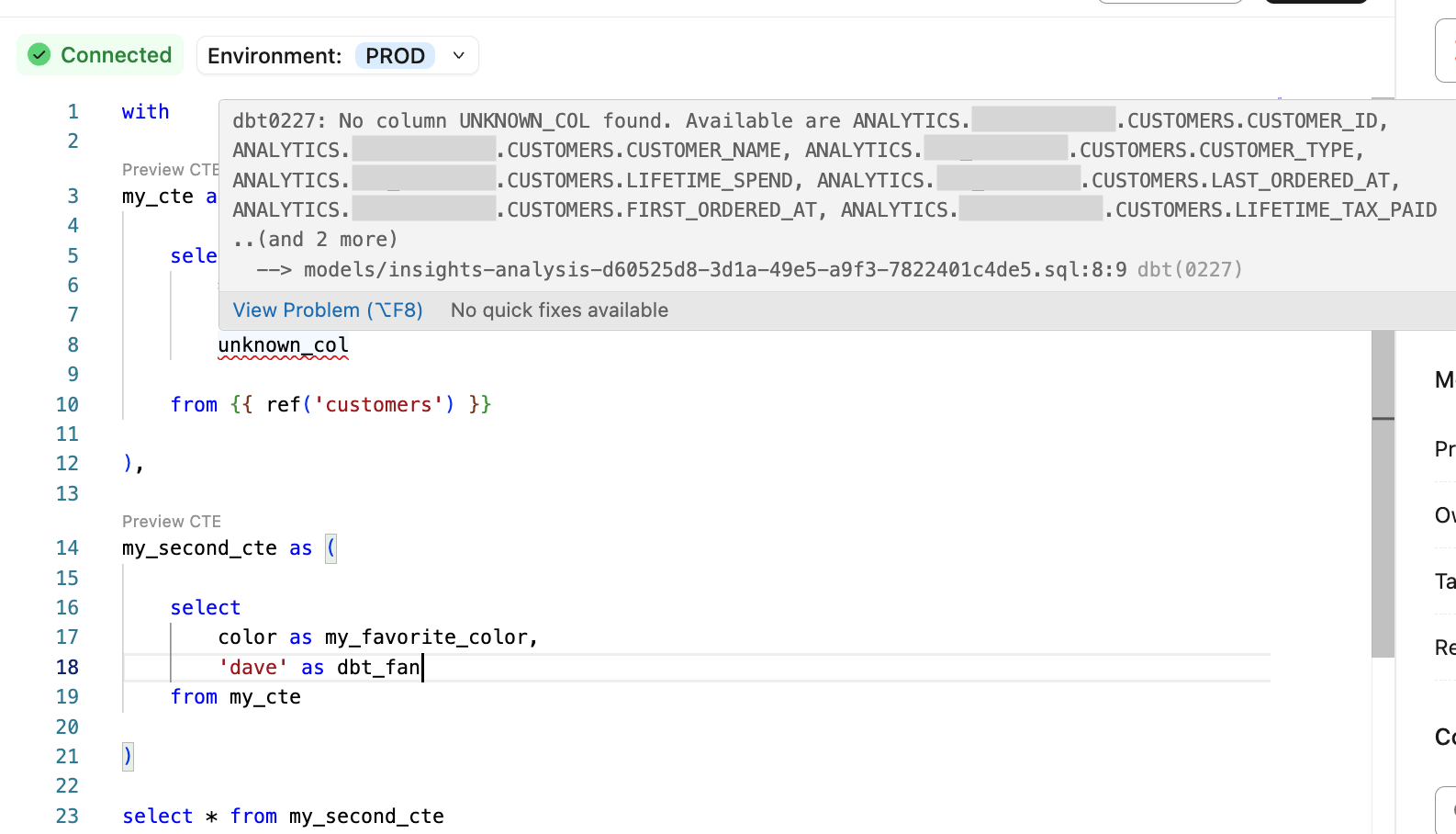

  • Real-time error detection: Automatically validate your SQL code to detect errors and surface warnings, without hitting the warehouse. This includes both dbt errors (like invalid ref) and SQL errors (like invalid column name or SQL syntax).

    Live error detectionLive error detection

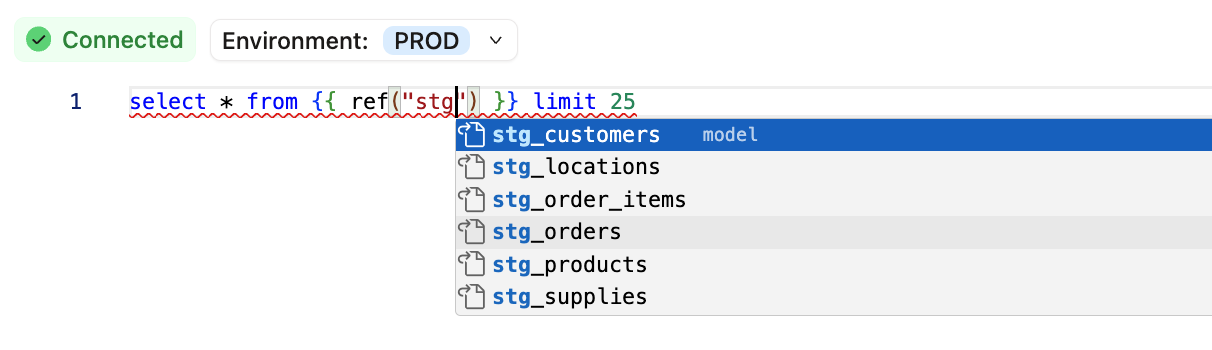

  • ref suggestions: Autocomplete model names when using the ref() function to reference other models in your project.

    ref suggestions in Insightsref suggestions in Insights

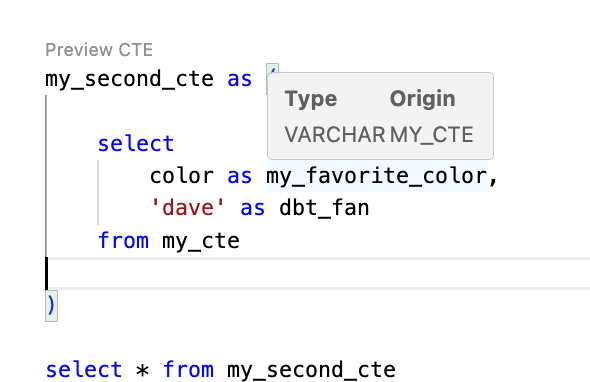

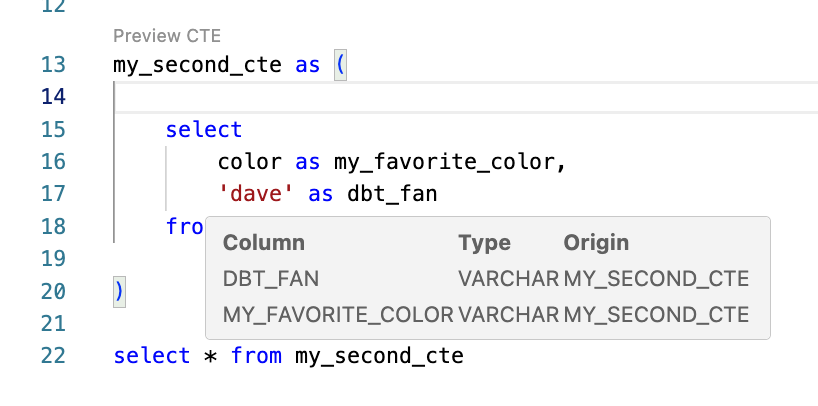

  • Hover insights: View context on tables, columns, and functions without leaving your code. Hover over any SQL element to see details like column names and data types.

    Sample column detailsSample column details
    Sample column detailsSample column details
