Connect your database

You can connect to your database in dbt Cloud by clicking the gear in the top right and then selecting Account Settings. From the Account Settings page, click + New Project.

IP Restrictions

dbt Cloud will always connect to your data platform from the IP addresses specified in the Regions & IP addresses page.

Be sure to allow traffic from these IPs in your firewall, and include them in any database grants.

Changelog

Allowing these IP addresses only enables the connection to your data warehouse. However, you might want to send API requests from your restricted network to the dbt Cloud API. For example, you could use the API to send a POST request that triggers a job to run. Using the dbt Cloud API requires that you allow the cloud.getdbt.com subdomain. For more on the dbt Cloud architecture, see Deployment architecture.

Connecting to Postgres, Redshift, and AlloyDB

The following fields are required when creating a Postgres, Redshift, or AlloyDB connection:

FieldDescriptionExamples
Host NameThe hostname of the Postgres, Redshift, or AlloyDB database to connect to. This can either be a hostname or an IP address.xxx.us-east-1.amazonaws.com
PortUsually 5432 (Postgres) or 5439 (Redshift)5439
DatabaseThe logical database to connect to and run queries against.analytics

Note: When you set up a Redshift or Postgres connection in dbt Cloud, SSL-related parameters aren't available as inputs.

Configuring a Redshift connectionConfiguring a Redshift connection

Connecting via an SSH Tunnel

To connect to a Postgres, Redshift, or AlloyDB instance via an SSH tunnel, select the Use SSH Tunnel option when creating your connection. When configuring the tunnel, you must supply the hostname, username, and port for the bastion server.

Once the connection is saved, a public key will be generated and displayed for the Connection. You can copy this public key to the bastion server to authorize dbt Cloud to connect to your database via the bastion server.

A generated public key for a Redshift connectionA generated public key for a Redshift connection

About the Bastion server in AWS

What is a Bastion server?
A bastion server in Amazon Web Services (AWS) is a host that allows dbt Cloud to open an SSH connection.
dbt Cloud only sends queries and doesn't transmit large data volumes. This means the bastion server can run on an AWS instance of any size, like a t2.small instance or t2.micro.

Make sure the location of the instance is the same Virtual Private Cloud (VPC) as the Redshift instance, and configure the security group for the bastion server to ensure that it's able to connect to the warehouse port.

Configuring the Bastion Server in AWS:

To configure the SSH tunnel in dbt Cloud, you'll need to provide the hostname/IP of your bastion server, username, and port, of your choosing, that dbt Cloud will connect to. Review the following steps:

  • Verify the bastion server has its network security rules set up to accept connections from the dbt Cloud IP addresses on whatever port you configured.
  • Set up the user account by using the bastion servers instance's CLI, The following example uses the username dbtcloud: sudo groupadd dbtcloud
    sudo useradd -m -g dbtcloud dbtcloud
    sudo su - dbtcloud
    mkdir ~/.ssh
    chmod 700 ~/.ssh
    touch ~/.ssh/authorized_keys
    chmod 600 ~/.ssh/authorized_keys
  • Copy and paste the dbt Cloud generated public key, into the authorized_keys file.

The Bastion server should now be ready for dbt Cloud to use as a tunnel into the Redshift environment.

Connecting to Snowflake

The following fields are required when creating a Snowflake connection:

FieldDescriptionExamples
AccountThe Snowflake account to connect to. Take a look here to determine what the account field should look like based on your region.

  db5261993 or db5261993.east-us-2.azure
  db5261993.eu-central-1.snowflakecomputing.com

RoleA mandatory field indicating what role should be assumed after connecting to Snowflaketransformer
DatabaseThe logical database to connect to and run queries against.analytics
WarehouseThe virtual warehouse to use for running queries.transforming

Note: A crucial part of working with dbt atop Snowflake is ensuring that users (in development environments) and/or service accounts (in deployment to production environments) have the correct permissions to take actions on Snowflake! Here is documentation of some example permissions to configure Snowflake access.

Username / Password

Available in: Development environments, Deployment environments

The Username / Password auth method is the simplest way to authenticate Development or Deployment credentials in a dbt project. Simply enter your Snowflake username (specifically, the login_name) and the corresponding user's Snowflake password to authenticate dbt Cloud to run queries against Snowflake on behalf of a Snowflake user.

Note: The schema field in the Developer Credentials section is a required field.

Snowflake username/password authenticationSnowflake username/password authentication

Key Pair

Available in: Development environments, Deployment environments

The Keypair auth method uses Snowflake's Key Pair Authentication to authenticate Development or Deployment credentials for a dbt Cloud project.

After generating an encrypted key pair, be sure to set the rsa_public_key for the Snowflake user to authenticate in dbt Cloud:

alter user jsmith set rsa_public_key='MIIBIjANBgkqh...';

Finally, set the "Private Key" and "Private Key Passphrase" fields in the "Edit Credentials" page to finish configuring dbt Cloud to authenticate with Snowflake using a key pair.

Note: At this time ONLY Encrypted Private Keys are supported by dbt Cloud, and the keys must be of size 4096 or smaller.

In order to successfully fill in the Private Key field, you must include the commented lines below when you add the passphrase. Leaving the PRIVATE KEY PASSPHRASE field empty will return an error - have a look at the examples below:

Example:

-----BEGIN ENCRYPTED PRIVATE KEY-----
< encrypted private key contents here >
-----END ENCRYPTED PRIVATE KEY-----
Snowflake keypair authenticationSnowflake keypair authentication

Snowflake OAuth

Available in: Development environments, Enterprise plans only

The OAuth auth method permits dbt Cloud to run development queries on behalf of a Snowflake user without the configuration of Snowflake password in dbt Cloud. For more information on configuring a Snowflake OAuth connection in dbt Cloud, please see the docs on setting up Snowflake OAuth.

Configuring Snowflake OAuth connectionConfiguring Snowflake OAuth connection

Connecting to BigQuery

JSON keyfile

Uploading a service account JSON keyfile

While the fields in a BigQuery connection can be specified manually, we recommend uploading a service account JSON keyfile to quickly and accurately configure a connection to BigQuery.

Uploading a JSON keyfile should populate the following fields:

  • Project id
  • Private key id
  • Private key
  • Client email
  • Client id
  • Auth uri
  • Token uri
  • Auth provider x509 cert url
  • Client x509 cert url

In addition to these fields, there are two other optional fields that can be configured in a BigQuery connection:

FieldDescriptionExamples
TimeoutDeprecated; exists for backwards compatibility with older versions of dbt and will be removed in the future.300
LocationThe location where dbt should create datasets.US, EU
A valid BigQuery connectionA valid BigQuery connection

BigQuery OAuth

Available in: Development environments, Enterprise plans only

The OAuth auth method permits dbt Cloud to run development queries on behalf of a BigQuery user without the configuration of BigQuery service account keyfile in dbt Cloud. For more information on the initial configuration of a BigQuery OAuth connection in dbt Cloud, please see the docs on setting up BigQuery OAuth.

As an end user, if your organization has set up BigQuery OAuth, you can link a project with your personal BigQuery account in your personal Profile in dbt Cloud, like so:

Link Button in dbt Cloud Credentials ScreenLink Button in dbt Cloud Credentials Screen

Connecting to Databricks

You can connect to Databricks by using one of two supported adapters: dbt-databricks and dbt-spark. For accounts on dbt 1.0 or later, we recommend using the dbt-databricks adapter. The dbt-databricks adapter is maintained by the Databricks team and is verified by dbt Labs. The Databricks team is committed to supporting and improving the adapter over time, so you can be sure the integrated experience will provide the best of dbt and the best of Databricks. Connecting to Databricks via dbt-spark will be deprecated in the future.

dbt-databricks Adapter

dbt-databricks is compatible with the following versions of dbt Core in dbt Cloud with varying degrees of functionality.

Featuredbt Versions
dbt-databricksAvailable starting with dbt 1.0 in dbt Cloud
Unity CatalogAvailable starting with dbt 1.1
Python modelsAvailable starting with dbt 1.3

The dbt-databricks adapter offers:

  • Easier set up
  • Better defaults: The dbt-databricks adapter is more opinionated, guiding users to an improved experience with less effort. Design choices of this adapter include defaulting to Delta format, using merge for incremental models, and running expensive queries with Photon.
  • Support for Unity Catalog: Unity Catalog allows Databricks users to centrally manage all data assets, simplifying access management and improving search and query performance. Databricks users can now get three-part data hierarchies – catalog, schema, model name – which solves a longstanding friction point in data organization and governance.

To set up the Databricks connection, supply the following fields:

FieldDescriptionExamples
Server HostnameThe hostname of the Databricks account to connect todbc-a2c61234-1234.cloud.databricks.com
HTTP PathThe HTTP path of the Databricks cluster or SQL warehouse/sql/1.0/warehouses/1a23b4596cd7e8fg
CatalogName of Databricks Catalog (optional)Production
Configuring a Databricks connection using the dbt-databricks adapterConfiguring a Databricks connection using the dbt-databricks adapter

dbt-spark Adapter

dbt Cloud supports connecting to Databricks using a Cluster or a SQL Warehouse (formerly called SQL endpoints). Depending on how you connect to Databricks, either one of the Cluster or Endpoint configurations must be provided, but setting both values is not allowed.

The following fields are available when creating a Databricks connection:

FieldDescriptionExamples
HostnameThe hostname of the Databricks account to connect todbc-a2c61234-1234.cloud.databricks.com
PortThe port to connect to Databricks for this connection443
OrganizationOptional (default: 0)1123456677899012
ClusterThe ID of the cluster to connect to (required if using a cluster)1234-567890-abc12345
EndpointThe ID of the endpoint to connect to (required if using Databricks SQL)1a23b4596cd7e8fg
UserOptionaldbt_cloud_user

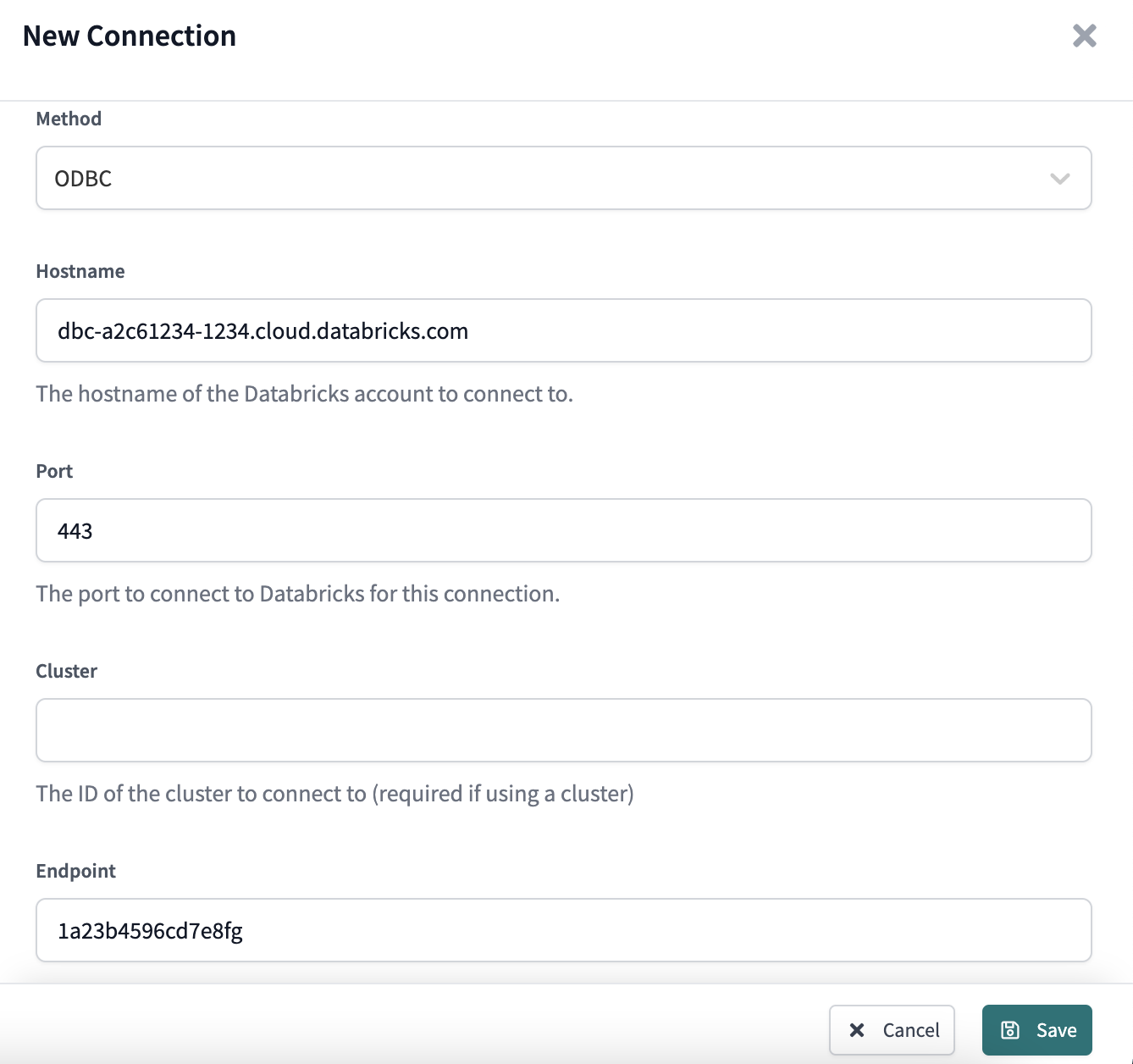

Configuring a Databricks connection using the dbt-spark adapterConfiguring a Databricks connection using the dbt-spark adapter

Connecting to Apache Spark

HTTP and Thrift

dbt Cloud supports connecting to an Apache Spark cluster using the HTTP method or the Thrift method. Note: While the HTTP method can be used to connect to an all-purpose Databricks cluster, the ODBC method is recommended for all Databricks connections. For further details on configuring these connection parameters, please see the dbt-spark documentation

The following fields are available when creating an Apache Spark connection using the HTTP and Thrift connection methods:

FieldDescriptionExamples
Host NameThe hostname of the Spark cluster to connect toyourorg.sparkhost.com
PortThe port to connect to Spark on443
OrganizationOptional (default: 0)0123456789
ClusterThe ID of the cluster to connect to1234-567890-abc12345
Connection TimeoutNumber of seconds after which to timeout a connection10
Connection RetriesNumber of times to attempt connecting to cluster before failing10
UserOptionaldbt_cloud_user
AuthOptional, supply if using KerberosKERBEROS
Kerberos Service NameOptional, supply if using Kerberoshive
Configuring a Spark connectionConfiguring a Spark connection
